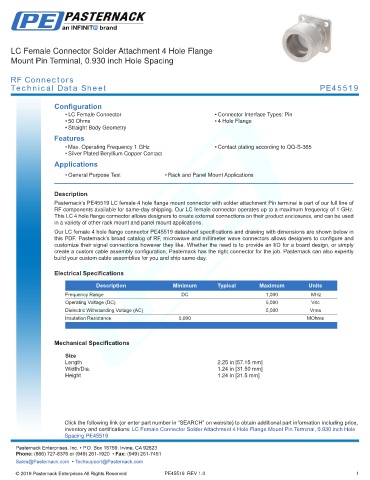

LC Female Connector Solder Attachment 4 Hole Flange
Mount Pin Terminal, 0.930 inch Hole Spacing

RF Connectors
Technical Data Sheet PE45519

Configuration
• LC Female Connector • Connector Interface Types: Pin
• 50 Ohms • 4 Hole Flange
• Straight Body Geometry
Features
• Max. Operating Frequency 1 GHz • Contact plating according to QQ-S-365
• Silver Plated Beryllium Copper Contact
Applications
• General Purpose Test • Rack and Panel Mount Applications
.
Description
Pasternack’s PE45519 LC female 4 hole flange mount connector with solder attachment Pin terminal is part of our full line of
RF components available for same-day shipping. Our LC female connector operates up to a maximum frequency of 1 GHz.
This LC 4 hole flange connector allows designers to create external connections on their product enclosures, and can be used
in a variety of other rack mount and panel mount applications.
Our LC female 4 hole flange connector PE45519 datasheet specifications and drawing with dimensions are shown below in
this PDF. Pasternack’s broad catalog of RF, microwave and millimeter wave connectors allows designers to configure and
customize their signal connections however they like. Whether the need is to provide an I/O for a board design, or simply
create a custom cable assembly configuration, Pasternack has the right connector for the job. Pasternack can also expertly
build your custom cable assemblies for you and ship same-day.

Electrical Specifications
Description Minimum Typical Maximum Units
Frequency Range DC 1,000 MHz
Operating Voltage (DC) 5,000 Vdc
Dielectric Withstanding Voltage (AC) 5,000 Vrms
Insulation Resistance 5,000 MOhms
.

Mechanical Specifications

Size
Length 2.25 in [57.15 mm]
Width/Dia. 1.24 in [31.50 mm]
Height 1.24 in [31.5 mm]
.
.

Click the following link (or enter part number in “SEARCH” on website) to obtain additional part information including price,
inventory and certifications: LC Female Connector Solder Attachment 4 Hole Flange Mount Pin Terminal, 0.930 inch Hole
-
Spacing PE45519 Pasternack does not make
any representation or warranty regarding the suitability of the part described herein for any particular purpose, and Pasternack does not assume any liability arising out of the use of any part or documentation.

PE45519 REV 1.0 1
