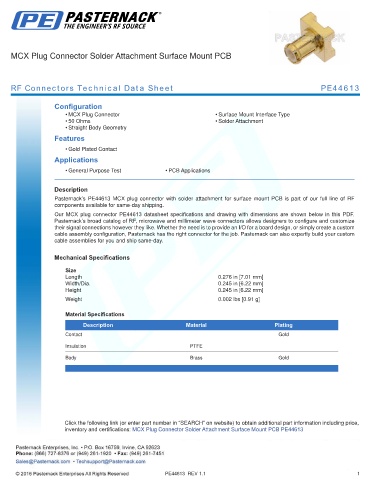

MCX Plug Connector Solder Attachment Surface Mount PCB

RF Connectors Technical Data Sheet PE44613

Configuration
• MCX Plug Connector • Surface Mount Interface Type
• 50 Ohms • Solder Attachment
• Straight Body Geometry
Features
• Gold Plated Contact
Applications
• General Purpose Test • PCB Applications
.
Description
Pasternack’s PE44613 MCX plug connector with solder attachment for surface mount PCB is part of our full line of RF
components available for same-day shipping.
Our MCX plug connector PE44613 datasheet specifications and drawing with dimensions are shown below in this PDF.
Pasternack’s broad catalog of RF, microwave and millimeter wave connectors allows designers to configure and customize
their signal connections however they like. Whether the need is to provide an I/O for a board design, or simply create a custom
cable assembly configuration, Pasternack has the right connector for the job. Pasternack can also expertly build your custom
cable assemblies for you and ship same-day.

Mechanical Specifications

Size
Length 0.276 in [7.01 mm]
Width/Dia. 0.245 in [6.22 mm]
Height 0.245 in [6.22 mm]
.
Weight 0.002 lbs [0.91 g]
.
Material Specifications
Description Material Plating
Contact Gold

Insulation PTFE
Body Brass Gold
.

Click the following link (or enter part number in “SEARCH” on website) to obtain additional part information including price,
inventory and certifications: MCX Plug Connector Solder Attachment Surface Mount PCB PE44613

PE44613 REV 1.1 1
