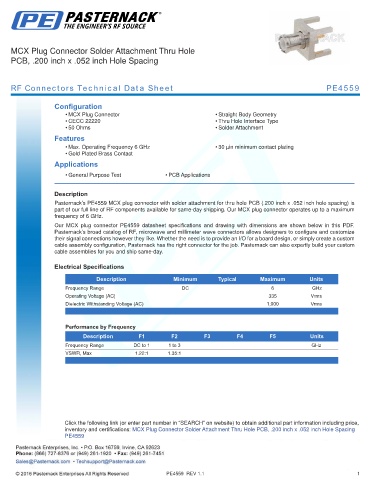

MCX Plug Connector Solder Attachment Thru Hole
PCB, .200 inch x .052 inch Hole Spacing

RF Connectors Technical Data Sheet PE4559

Configuration
• MCX Plug Connector • Straight Body Geometry
• CECC 22220 • Thru Hole Interface Type
• 50 Ohms • Solder Attachment
Features
• Max. Operating Frequency 6 GHz • 30 µin minimum contact plating
• Gold Plated Brass Contact
Applications
• General Purpose Test • PCB Applications
.
Description
Pasternack’s PE4559 MCX plug connector with solder attachment for thru hole PCB (.200 inch x .052 inch hole spacing) is
part of our full line of RF components available for same-day shipping. Our MCX plug connector operates up to a maximum
frequency of 6 GHz.
Our MCX plug connector PE4559 datasheet specifications and drawing with dimensions are shown below in this PDF.
Pasternack’s broad catalog of RF, microwave and millimeter wave connectors allows designers to configure and customize
their signal connections however they like. Whether the need is to provide an I/O for a board design, or simply create a custom
cable assembly configuration, Pasternack has the right connector for the job. Pasternack can also expertly build your custom
cable assemblies for you and ship same-day.

Electrical Specifications

Description Minimum Typical Maximum Units
Frequency Range DC 6 GHz
Operating Voltage (AC) 335 Vrms
Dielectric Withstanding Voltage (AC) 1,000 Vrms
.

Performance by Frequency
Description F1 F2 F3 F4 F5 Units
Frequency Range DC to 1 1 to 3 GHz
VSWR, Max 1.22:1 1.35:1
.

Click the following link (or enter part number in “SEARCH” on website) to obtain additional part information including price,
inventory and certifications: MCX Plug Connector Solder Attachment Thru Hole PCB, .200 inch x .052 inch Hole Spacing
PE4559

PE4559 REV 1.1 1
