MCX Plug Connector Solder Attachment Thru Hole
PCB, .200 inch x .052 inch Hole Spacing

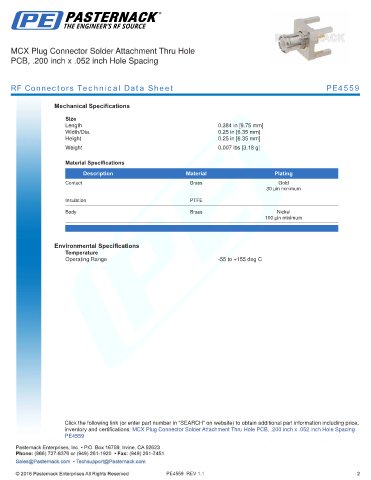

RF Connectors Technical Data Sheet PE4559

Mechanical Specifications

Size
Length 0.384 in [9.75 mm]
Width/Dia. 0.25 in [6.35 mm]
Height 0.25 in [6.35 mm]
.
Weight 0.007 lbs [3.18 g]
.
Material Specifications
Description Material Plating
Contact Brass Gold
30 µin minimum

Insulation PTFE
Body Brass Nickel
100 µin minimum
.

Environmental Specifications
Temperature
Operating Range -55 to +155 deg C

Click the following link (or enter part number in “SEARCH” on website) to obtain additional part information including price,
inventory and certifications: MCX Plug Connector Solder Attachment Thru Hole PCB, .200 inch x .052 inch Hole Spacing
PE4559
