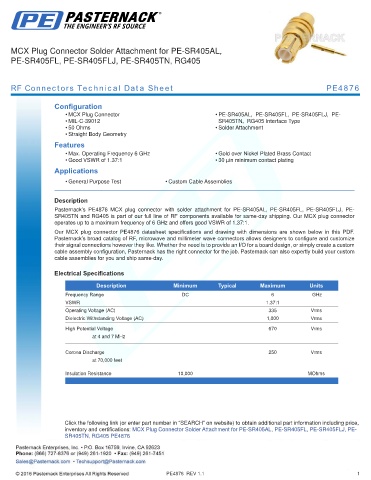

MCX Plug Connector Solder Attachment for PE-SR405AL,
PE-SR405FL, PE-SR405FLJ, PE-SR405TN, RG405

RF Connectors Technical Data Sheet PE4876

Configuration
• MCX Plug Connector • PE-SR405AL, PE-SR405FL, PE-SR405FLJ, PE-
• MIL-C-39012 SR405TN, RG405 Interface Type
• 50 Ohms • Solder Attachment
• Straight Body Geometry
Features
• Max. Operating Frequency 6 GHz • Gold over Nickel Plated Brass Contact
• Good VSWR of 1.37:1 • 30 µin minimum contact plating
Applications

• General Purpose Test • Custom Cable Assemblies
.
Description
Pasternack’s PE4876 MCX plug connector with solder attachment for PE-SR405AL, PE-SR405FL, PE-SR405FLJ, PE-
SR405TN and RG405 is part of our full line of RF components available for same-day shipping. Our MCX plug connector
operates up to a maximum frequency of 6 GHz and offers good VSWR of 1.37:1.
Our MCX plug connector PE4876 datasheet specifications and drawing with dimensions are shown below in this PDF.
Pasternack’s broad catalog of RF, microwave and millimeter wave connectors allows designers to configure and customize
their signal connections however they like. Whether the need is to provide an I/O for a board design, or simply create a custom
cable assembly configuration, Pasternack has the right connector for the job. Pasternack can also expertly build your custom
cable assemblies for you and ship same-day.

Electrical Specifications
Description Minimum Typical Maximum Units
Frequency Range DC 6 GHz
VSWR 1.37:1
Operating Voltage (AC) 335 Vrms
Dielectric Withstanding Voltage (AC) 1,000 Vrms
High Potential Voltage 670 Vrms
at 4 and 7 MHz

Corona Discharge 250 Vrms
at 70,000 feet
Insulation Resistance 10,000 MOhms
.

Click the following link (or enter part number in “SEARCH” on website) to obtain additional part information including price,
inventory and certifications: MCX Plug Connector Solder Attachment for PE-SR405AL, PE-SR405FL, PE-SR405FLJ, PE-
SR405TN, RG405 PE4876
