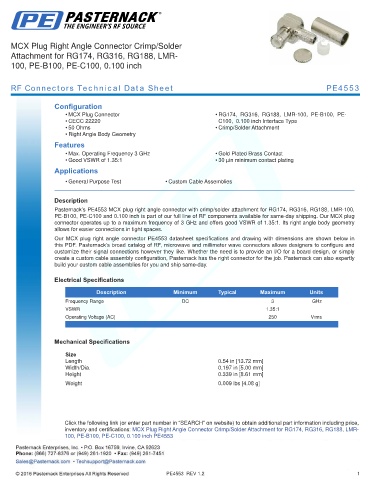

MCX Plug Right Angle Connector Crimp/Solder
Attachment for RG174, RG316, RG188, LMR-
100, PE-B100, PE-C100, 0.100 inch

RF Connectors Technical Data Sheet PE4553

Configuration
• MCX Plug Connector • RG174, RG316, RG188, LMR-100, PE-B100, PE-
• CECC 22220 C100, 0.100 inch Interface Type
• 50 Ohms • Crimp/Solder Attachment
• Right Angle Body Geometry
Features
• Max. Operating Frequency 3 GHz • Gold Plated Brass Contact
• Good VSWR of 1.35:1 • 30 µin minimum contact plating
Applications

• General Purpose Test • Custom Cable Assemblies
.
Description
Pasternack’s PE4553 MCX plug right angle connector with crimp/solder attachment for RG174, RG316, RG188, LMR-100,
PE-B100, PE-C100 and 0.100 inch is part of our full line of RF components available for same-day shipping. Our MCX plug
connector operates up to a maximum frequency of 3 GHz and offers good VSWR of 1.35:1. Its right angle body geometry
allows for easier connections in tight spaces.
Our MCX plug right angle connector PE4553 datasheet specifications and drawing with dimensions are shown below in
this PDF. Pasternack’s broad catalog of RF, microwave and millimeter wave connectors allows designers to configure and
customize their signal connections however they like. Whether the need is to provide an I/O for a board design, or simply
create a custom cable assembly configuration, Pasternack has the right connector for the job. Pasternack can also expertly
build your custom cable assemblies for you and ship same-day.

Electrical Specifications

Description Minimum Typical Maximum Units
Frequency Range DC 3 GHz
VSWR 1.35:1
Operating Voltage (AC) 250 Vrms
.

Mechanical Specifications
Size
Length 0.54 in [13.72 mm]
Width/Dia. 0.197 in [5.00 mm]
Height 0.339 in [8.61 mm]
.
Weight 0.009 lbs [4.08 g]
.

Click the following link (or enter part number in “SEARCH” on website) to obtain additional part information including price,
inventory and certifications: MCX Plug Right Angle Connector Crimp/Solder Attachment for RG174, RG316, RG188, LMR-
100, PE-B100, PE-C100, 0.100 inch PE4553
