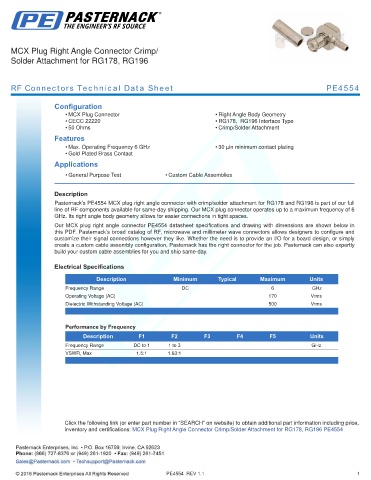

MCX Plug Right Angle Connector Crimp/
Solder Attachment for RG178, RG196

RF Connectors Technical Data Sheet PE4554

Configuration
• MCX Plug Connector • Right Angle Body Geometry
• CECC 22220 • RG178, RG196 Interface Type
• 50 Ohms • Crimp/Solder Attachment
Features
• Max. Operating Frequency 6 GHz • 30 µin minimum contact plating
• Gold Plated Brass Contact
Applications
• General Purpose Test • Custom Cable Assemblies
.
Description
Pasternack’s PE4554 MCX plug right angle connector with crimp/solder attachment for RG178 and RG196 is part of our full
line of RF components available for same-day shipping. Our MCX plug connector operates up to a maximum frequency of 6
GHz. Its right angle body geometry allows for easier connections in tight spaces.
Our MCX plug right angle connector PE4554 datasheet specifications and drawing with dimensions are shown below in
this PDF. Pasternack’s broad catalog of RF, microwave and millimeter wave connectors allows designers to configure and
customize their signal connections however they like. Whether the need is to provide an I/O for a board design, or simply
create a custom cable assembly configuration, Pasternack has the right connector for the job. Pasternack can also expertly
build your custom cable assemblies for you and ship same-day.

Electrical Specifications

Description Minimum Typical Maximum Units
Frequency Range DC 6 GHz
Operating Voltage (AC) 170 Vrms
Dielectric Withstanding Voltage (AC) 500 Vrms
.

Performance by Frequency
Description F1 F2 F3 F4 F5 Units
Frequency Range DC to 1 1 to 3 GHz
VSWR, Max 1.5:1 1.63:1
.

Click the following link (or enter part number in “SEARCH” on website) to obtain additional part information including price,
inventory and certifications: MCX Plug Right Angle Connector Crimp/Solder Attachment for RG178, RG196 PE4554

PE4554 REV 1.1 1
