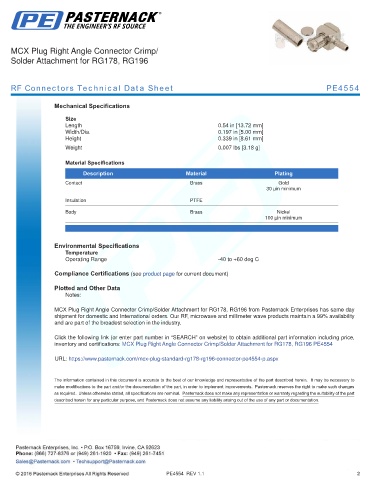

MCX Plug Right Angle Connector Crimp/
Solder Attachment for RG178, RG196

RF Connectors Technical Data Sheet PE4554

Mechanical Specifications

Size
Length 0.54 in [13.72 mm]
Width/Dia. 0.197 in [5.00 mm]
Height 0.339 in [8.61 mm]
.
Weight 0.007 lbs [3.18 g]
.
Material Specifications
Description Material Plating
Contact Brass Gold
30 µin minimum

Insulation PTFE
Body Brass Nickel
100 µin minimum
.

Environmental Specifications
Temperature
Operating Range -40 to +60 deg C

Compliance Certifications (see product page for current document)
Plotted and Other Data
Notes:

MCX Plug Right Angle Connector Crimp/Solder Attachment for RG178, RG196 from Pasternack Enterprises has same day
shipment for domestic and International orders. Our RF, microwave and millimeter wave products maintain a 99% availability
and are part of the broadest selection in the industry.

Click the following link (or enter part number in “SEARCH” on website) to obtain additional part information including price,
inventory and certifications: MCX Plug Right Angle Connector Crimp/Solder Attachment for RG178, RG196 PE4554

URL: https://www.pasternack.com/mcx-plug-standard-rg178-rg196-connector-pe4554-p.aspx

PE4554 REV 1.1 2
