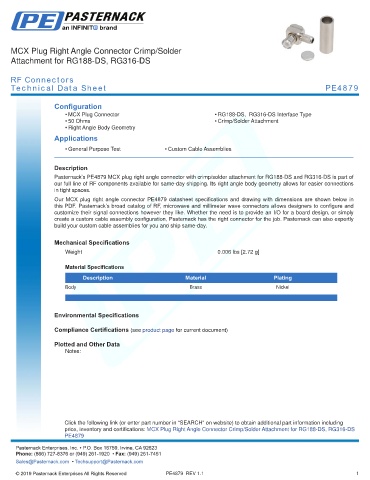

MCX Plug Right Angle Connector Crimp/Solder
Attachment for RG188-DS, RG316-DS

RF Connectors
Technical Data Sheet PE4879

Configuration
• MCX Plug Connector • RG188-DS, RG316-DS Interface Type
• 50 Ohms • Crimp/Solder Attachment
• Right Angle Body Geometry
Applications
• General Purpose Test • Custom Cable Assemblies
.
Description
Pasternack’s PE4879 MCX plug right angle connector with crimp/solder attachment for RG188-DS and RG316-DS is part of
our full line of RF components available for same-day shipping. Its right angle body geometry allows for easier connections
in tight spaces.
Our MCX plug right angle connector PE4879 datasheet specifications and drawing with dimensions are shown below in
this PDF. Pasternack’s broad catalog of RF, microwave and millimeter wave connectors allows designers to configure and
customize their signal connections however they like. Whether the need is to provide an I/O for a board design, or simply
create a custom cable assembly configuration, Pasternack has the right connector for the job. Pasternack can also expertly
build your custom cable assemblies for you and ship same-day.

Mechanical Specifications
.
Weight 0.006 lbs [2.72 g]
.
Material Specifications
Description Material Plating
Body Brass Nickel

.

Environmental Specifications

Compliance Certifications (see product page for current document)

Plotted and Other Data
Notes:

Click the following link (or enter part number in “SEARCH” on website) to obtain additional part information including
price, inventory and certifications: MCX Plug Right Angle Connector Crimp/Solder Attachment for RG188-DS, RG316-DS
-
PE4879 Pasternack does not make
any representation or warranty regarding the suitability of the part described herein for any particular purpose, and Pasternack does not assume any liability arising out of the use of any part or documentation.

PE4879 REV 1.1 1
