MCX Plug Right Angle Connector Solder Attachment for PE-
SR405AL, PE-SR405FL, PE-SR405FLJ, PE-SR405TN, RG405

RF Connectors

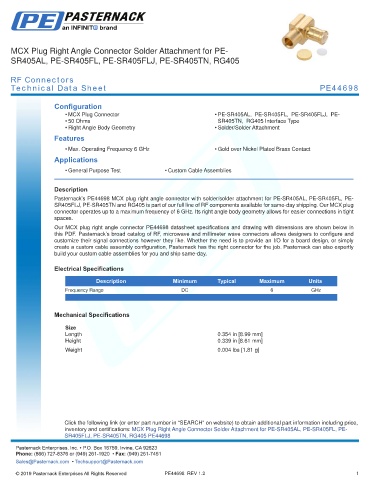

Technical Data Sheet PE44698

Configuration
• MCX Plug Connector • PE-SR405AL, PE-SR405FL, PE-SR405FLJ, PE-
• 50 Ohms SR405TN, RG405 Interface Type
• Right Angle Body Geometry • Solder/Solder Attachment
Features
• Max. Operating Frequency 6 GHz • Gold over Nickel Plated Brass Contact
Applications
• General Purpose Test • Custom Cable Assemblies
.
Description
Pasternack’s PE44698 MCX plug right angle connector with solder/solder attachment for PE-SR405AL, PE-SR405FL, PE-
SR405FLJ, PE-SR405TN and RG405 is part of our full line of RF components available for same-day shipping. Our MCX plug
connector operates up to a maximum frequency of 6 GHz. Its right angle body geometry allows for easier connections in tight
spaces.
Our MCX plug right angle connector PE44698 datasheet specifications and drawing with dimensions are shown below in
this PDF. Pasternack’s broad catalog of RF, microwave and millimeter wave connectors allows designers to configure and
customize their signal connections however they like. Whether the need is to provide an I/O for a board design, or simply
create a custom cable assembly configuration, Pasternack has the right connector for the job. Pasternack can also expertly
build your custom cable assemblies for you and ship same-day.
Electrical Specifications

Description Minimum Typical Maximum Units
Frequency Range DC 6 GHz
.

Mechanical Specifications

Size
Length 0.354 in [8.99 mm]
Height 0.339 in [8.61 mm]
.
Weight 0.004 lbs [1.81 g]
.

Click the following link (or enter part number in “SEARCH” on website) to obtain additional part information including price,
inventory and certifications: MCX Plug Right Angle Connector Solder Attachment for PE-SR405AL, PE-SR405FL, PE- -
SR405FLJ, PE-SR405TN, RG405 PE44698 Pasternack does not make
any representation or warranty regarding the suitability of the part described herein for any particular purpose, and Pasternack does not assume any liability arising out of the use of any part or documentation.

PE44698 REV 1.2 1
