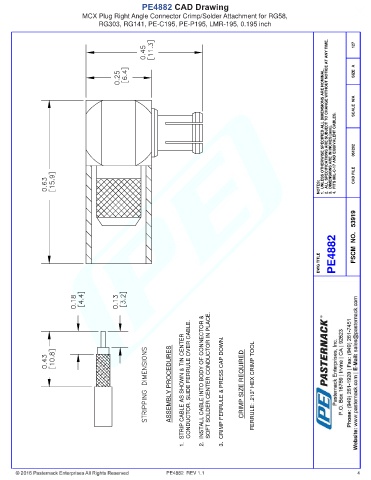

PE4882 CAD Drawing
MCX Plug Right Angle Connector Crimp/Solder Attachment for RG58,
RG303, RG141, PE-C195, PE-P195, LMR-195, 0.195 inch

2. ALL SPECIFICATIONS ARE SUBJECT TO CHANGE WITHOUT NOTICE AT ANY TIME.
127

SIZE A
1. UNLESS OTHERWISE SPECIFIED ALL DIMENSIONS ARE NOMINAL.

SCALE N/A

3. DIMENSIONS ARE IN INCHES [mm]. 4. FITS MIL-C-17 AND EQUIVALENT CABLES. 061202

NOTES: CAD FILE

DWG TITLE PE4882 FSCM NO. 53919

ASSEMBLY PROCEDURES 1. STRIP CABLE AS SHOWN & TIN CENTER CONDUCTOR. SLIDE FERRULE OVER CABLE. 2. INSTALL CABLE INTO BODY OF CONNECTOR & SOFT SOLDER CENTER CONDUCTOR IN PLACE. 3. CRIMP FERRULE & PRESS CAP DOWN. CRIMP SIZE REQUIRED FERRULE: .213" HEX CRIMP TOOL

PE4882 REV 1.1 4
