MCX Plug Right Angle Connector Solder Attachment
Thru-Hole PCB, .200 inch x .067 inch Hole Spacing

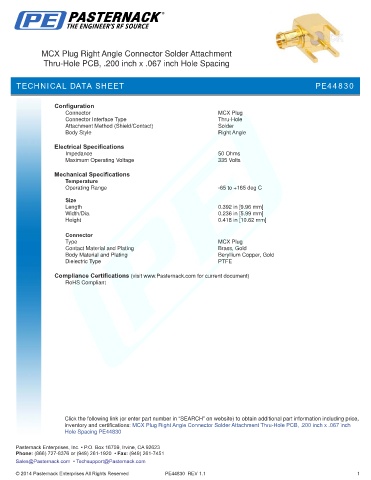

TECHNICAL DATA SHEET PE44830

Configuration
Connector MCX Plug
Connector Interface Type Thru-Hole
Attachment Method (Shield/Contact) Solder
Body Style Right Angle

Electrical Specifications
Impedance 50 Ohms
Maximum Operating Voltage 335 Volts

Mechanical Specifications
Temperature
Operating Range -65 to +165 deg C
Size
Length 0.392 in [9.96 mm]
Width/Dia. 0.236 in [5.99 mm]
Height 0.418 in [10.62 mm]
.
Connector
Type MCX Plug
Contact Material and Plating Brass, Gold
Body Material and Plating Beryllium Copper, Gold
Dielectric Type PTFE

Compliance Certifications (visit www.Pasternack.com for current document)
RoHS Compliant

Click the following link (or enter part number in “SEARCH” on website) to obtain additional part information including price,
inventory and certifications: MCX Plug Right Angle Connector Solder Attachment Thru-Hole PCB, .200 inch x .067 inch
Hole Spacing PE44830
