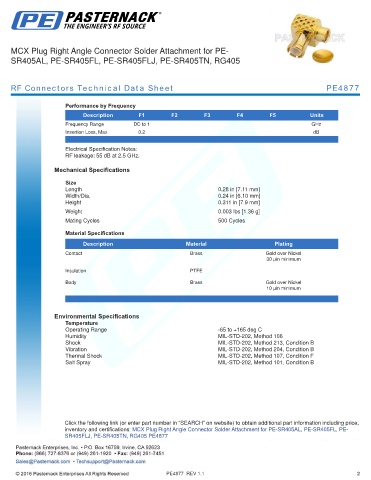

MCX Plug Right Angle Connector Solder Attachment for PE-
SR405AL, PE-SR405FL, PE-SR405FLJ, PE-SR405TN, RG405
RF Connectors Technical Data Sheet PE4877
Performance by Frequency
Description F1 F2 F3 F4 F5 Units
Frequency Range DC to 1 GHz
Insertion Loss, Max 0.2 dB
.
Electrical Specification Notes:
RF leakage: 55 dB at 2.5 GHz.
Mechanical Specifications
Size
Length 0.28 in [7.11 mm]
Width/Dia. 0.24 in [6.10 mm]
Height 0.311 in [7.9 mm]
.
Weight 0.003 lbs [1.36 g]
.
Mating Cycles 500 Cycles
Material Specifications
Description Material Plating
Contact Brass Gold over Nickel
30 µin minimum
Insulation PTFE
Body Brass Gold over Nickel
10 µin minimum
.
Environmental Specifications
Temperature
Operating Range -65 to +165 deg C
Humidity MIL-STD-202, Method 106
Shock MIL-STD-202, Method 213, Condition B
Vibration MIL-STD-202, Method 204, Condition B
Thermal Shock MIL-STD-202, Method 107, Condition F
Salt Spray MIL-STD-202, Method 101, Condition B
Click the following link (or enter part number in “SEARCH” on website) to obtain additional part information including price,
inventory and certifications: MCX Plug Right Angle Connector Solder Attachment for PE-SR405AL, PE-SR405FL, PE-
SR405FLJ, PE-SR405TN, RG405 PE4877
