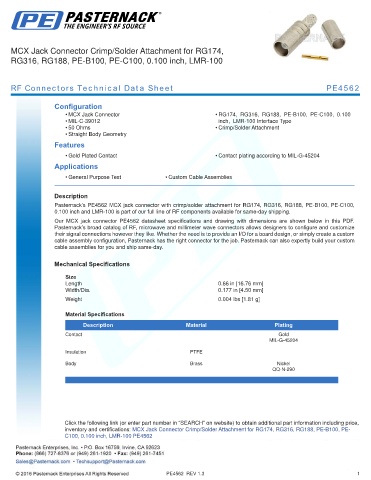

MCX Jack Connector Crimp/Solder Attachment for RG174,
RG316, RG188, PE-B100, PE-C100, 0.100 inch, LMR-100

RF Connectors Technical Data Sheet PE4562

Configuration
• MCX Jack Connector • RG174, RG316, RG188, PE-B100, PE-C100, 0.100
• MIL-C-39012 inch, LMR-100 Interface Type
• 50 Ohms • Crimp/Solder Attachment
• Straight Body Geometry
Features
• Gold Plated Contact • Contact plating according to MIL-G-45204
Applications

• General Purpose Test • Custom Cable Assemblies
.
Description
Pasternack’s PE4562 MCX jack connector with crimp/solder attachment for RG174, RG316, RG188, PE-B100, PE-C100,
0.100 inch and LMR-100 is part of our full line of RF components available for same-day shipping.
Our MCX jack connector PE4562 datasheet specifications and drawing with dimensions are shown below in this PDF.
Pasternack’s broad catalog of RF, microwave and millimeter wave connectors allows designers to configure and customize
their signal connections however they like. Whether the need is to provide an I/O for a board design, or simply create a custom
cable assembly configuration, Pasternack has the right connector for the job. Pasternack can also expertly build your custom
cable assemblies for you and ship same-day.

Mechanical Specifications
Size
Length 0.66 in [16.76 mm]
Width/Dia. 0.177 in [4.50 mm]
.
Weight 0.004 lbs [1.81 g]
.
Material Specifications
Description Material Plating
Contact Gold
MIL-G-45204
Insulation PTFE
Body Brass Nickel
QQ-N-290
.

Click the following link (or enter part number in “SEARCH” on website) to obtain additional part information including price,
inventory and certifications: MCX Jack Connector Crimp/Solder Attachment for RG174, RG316, RG188, PE-B100, PE-
C100, 0.100 inch, LMR-100 PE4562

PE4562 REV 1.3 1
