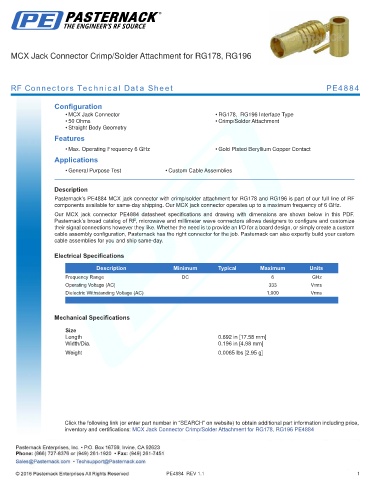

MCX Jack Connector Crimp/Solder Attachment for RG178, RG196

RF Connectors Technical Data Sheet PE4884

Configuration
• MCX Jack Connector • RG178, RG196 Interface Type
• 50 Ohms • Crimp/Solder Attachment
• Straight Body Geometry
Features
• Max. Operating Frequency 6 GHz • Gold Plated Beryllium Copper Contact
Applications
• General Purpose Test • Custom Cable Assemblies
.
Description
Pasternack’s PE4884 MCX jack connector with crimp/solder attachment for RG178 and RG196 is part of our full line of RF
components available for same-day shipping. Our MCX jack connector operates up to a maximum frequency of 6 GHz.
Our MCX jack connector PE4884 datasheet specifications and drawing with dimensions are shown below in this PDF.
Pasternack’s broad catalog of RF, microwave and millimeter wave connectors allows designers to configure and customize
their signal connections however they like. Whether the need is to provide an I/O for a board design, or simply create a custom
cable assembly configuration, Pasternack has the right connector for the job. Pasternack can also expertly build your custom
cable assemblies for you and ship same-day.

Electrical Specifications
Description Minimum Typical Maximum Units
Frequency Range DC 6 GHz
Operating Voltage (AC) 333 Vrms
Dielectric Withstanding Voltage (AC) 1,000 Vrms
.

Mechanical Specifications
Size
Length 0.692 in [17.58 mm]
Width/Dia. 0.196 in [4.98 mm]
.
Weight 0.0065 lbs [2.95 g]
.

Click the following link (or enter part number in “SEARCH” on website) to obtain additional part information including price,
inventory and certifications: MCX Jack Connector Crimp/Solder Attachment for RG178, RG196 PE4884
