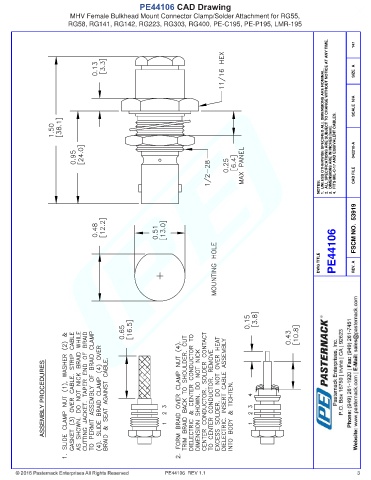

PE44106 CAD Drawing
MHV Female Bulkhead Mount Connector Clamp/Solder Attachment for RG55,
RG58, RG141, RG142, RG223, RG303, RG400, PE-C195, PE-P195, LMR-195

2. ALL SPECIFICATIONS ARE SUBJECT TO CHANGE WITHOUT NOTICE AT ANY TIME.
147

SIZE A
1. UNLESS OTHERWISE SPECIFIED ALL DIMENSIONS ARE NOMINAL.

SCALE N/A

3. DIMENSIONS ARE IN INCHES [mm]. 4. FITS MIL-C-17 AND EQUIVALENT CABLES. 042210-A

NOTES: CAD FILE

PE44106 FSCM NO. 53919

DWG TITLE REV. A

ASSEMBLY PROCEDURES

PE44106 REV 1.1 3
