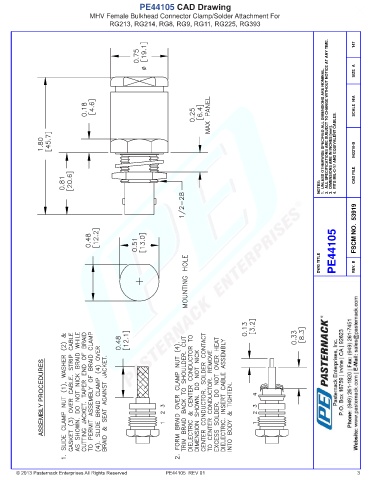

PE44105 CAD Drawing
MHV Female Bulkhead Connector Clamp/Solder Attachment For
RG213, RG214, RG8, RG9, RG11, RG225, RG393

2. ALL SPECIFICATIONS ARE SUBJECT TO CHANGE WITHOUT NOTICE AT ANY TIME.
147

SIZE A
1. UNLESS OTHERWISE SPECIFIED ALL DIMENSIONS ARE NOMINAL.

SCALE N/A

3. DIMENSIONS ARE IN INCHES [mm]. 4. FITS MIL-C-17 AND EQUIVALENT CABLES. 042210-B

NOTES: CAD FILE

PE44105 FSCM NO. 53919

DWG TITLE REV. B

ASSEMBLY PROCEDURES

© 2013 Pasternack Enterprises All Rights Reserved PE44105 REV 01 3
