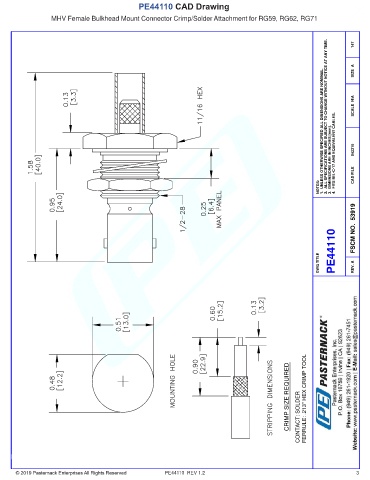

PE44110 CAD Drawing
MHV Female Bulkhead Mount Connector Crimp/Solder Attachment for RG59, RG62, RG71
2. ALL SPECIFICATIONS ARE SUBJECT TO CHANGE WITHOUT NOTICE AT ANY TIME.
147
SIZE A
1. UNLESS OTHERWISE SPECIFIED ALL DIMENSIONS ARE NOMINAL.
SCALE N/A
3. DIMENSIONS ARE IN INCHES [mm]. 4. FITS MIL-C-17 AND EQUIVALENT CABLES. 042210
NOTES: CAD FILE
PE44110 FSCM NO. 53919
DWG TITLE REV. A
CRIMP SIZE REQUIRED FERRULE: .213" HEX CRIMP TOOL
CONTACT: SOLDER
Pasternack does not make
any representation or warranty regarding the suitability of the part described herein for any particular purpose, and Pasternack does not assume any liability arising out of the use of any part or documentation. -
PE44110 REV 1.2 3
