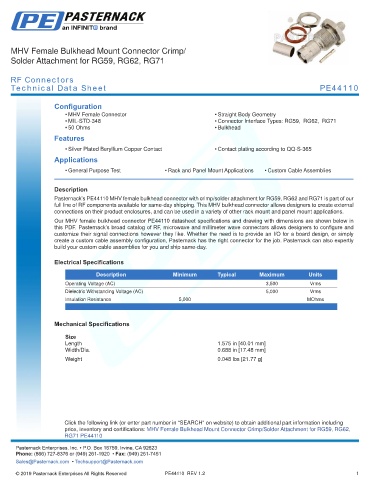

MHV Female Bulkhead Mount Connector Crimp/
Solder Attachment for RG59, RG62, RG71

RF Connectors
Technical Data Sheet PE44110

Configuration
• MHV Female Connector • Straight Body Geometry
• MIL-STD-348 • Connector Interface Types: RG59, RG62, RG71
• 50 Ohms • Bulkhead
Features
• Silver Plated Beryllium Copper Contact • Contact plating according to QQ-S-365
Applications
• General Purpose Test • Rack and Panel Mount Applications • Custom Cable Assemblies
.
Description
Pasternack’s PE44110 MHV female bulkhead connector with crimp/solder attachment for RG59, RG62 and RG71 is part of our
full line of RF components available for same-day shipping. This MHV bulkhead connector allows designers to create external
connections on their product enclosures, and can be used in a variety of other rack mount and panel mount applications.
Our MHV female bulkhead connector PE44110 datasheet specifications and drawing with dimensions are shown below in
this PDF. Pasternack’s broad catalog of RF, microwave and millimeter wave connectors allows designers to configure and
customize their signal connections however they like. Whether the need is to provide an I/O for a board design, or simply
create a custom cable assembly configuration, Pasternack has the right connector for the job. Pasternack can also expertly
build your custom cable assemblies for you and ship same-day.

Electrical Specifications

Description Minimum Typical Maximum Units
Operating Voltage (AC) 3,500 Vrms
Dielectric Withstanding Voltage (AC) 5,000 Vrms
Insulation Resistance 5,000 MOhms
.

Mechanical Specifications

Size
Length 1.575 in [40.01 mm]
Width/Dia. 0.688 in [17.48 mm]
.
Weight 0.048 lbs [21.77 g]
.

Click the following link (or enter part number in “SEARCH” on website) to obtain additional part information including
price, inventory and certifications: MHV Female Bulkhead Mount Connector Crimp/Solder Attachment for RG59, RG62, -
RG71 PE44110 Pasternack does not make
any representation or warranty regarding the suitability of the part described herein for any particular purpose, and Pasternack does not assume any liability arising out of the use of any part or documentation.

PE44110 REV 1.2 1
