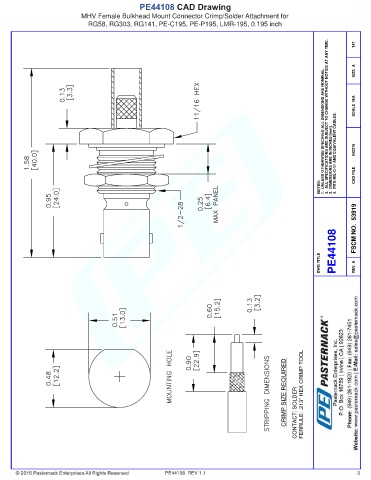

PE44108 CAD Drawing
MHV Female Bulkhead Mount Connector Crimp/Solder Attachment for
RG58, RG303, RG141, PE-C195, PE-P195, LMR-195, 0.195 inch

2. ALL SPECIFICATIONS ARE SUBJECT TO CHANGE WITHOUT NOTICE AT ANY TIME.
147

SIZE A
1. UNLESS OTHERWISE SPECIFIED ALL DIMENSIONS ARE NOMINAL.

SCALE N/A

3. DIMENSIONS ARE IN INCHES [mm]. 4. FITS MIL-C-17 AND EQUIVALENT CABLES. 042210

NOTES: CAD FILE

PE44108 FSCM NO. 53919

DWG TITLE REV. A

CRIMP SIZE REQUIRED CONTACT: SOLDER FERRULE: .213" HEX CRIMP TOOL

PE44108 REV 1.1 3
