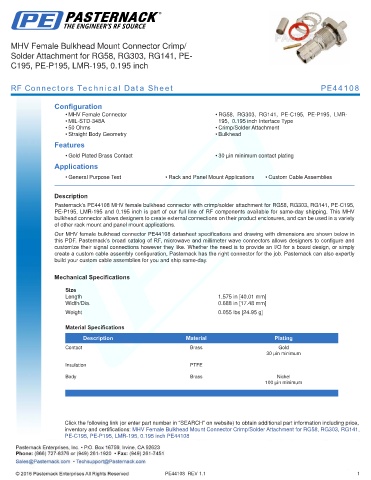

MHV Female Bulkhead Mount Connector Crimp/
Solder Attachment for RG58, RG303, RG141, PE-
C195, PE-P195, LMR-195, 0.195 inch

RF Connectors Technical Data Sheet PE44108

Configuration
• MHV Female Connector • RG58, RG303, RG141, PE-C195, PE-P195, LMR-
• MIL-STD-348A 195, 0.195 inch Interface Type
• 50 Ohms • Crimp/Solder Attachment
• Straight Body Geometry • Bulkhead
Features
• Gold Plated Brass Contact • 30 µin minimum contact plating
Applications

• General Purpose Test • Rack and Panel Mount Applications • Custom Cable Assemblies
.
Description
Pasternack’s PE44108 MHV female bulkhead connector with crimp/solder attachment for RG58, RG303, RG141, PE-C195,
PE-P195, LMR-195 and 0.195 inch is part of our full line of RF components available for same-day shipping. This MHV
bulkhead connector allows designers to create external connections on their product enclosures, and can be used in a variety
of other rack mount and panel mount applications.
Our MHV female bulkhead connector PE44108 datasheet specifications and drawing with dimensions are shown below in
this PDF. Pasternack’s broad catalog of RF, microwave and millimeter wave connectors allows designers to configure and
customize their signal connections however they like. Whether the need is to provide an I/O for a board design, or simply
create a custom cable assembly configuration, Pasternack has the right connector for the job. Pasternack can also expertly
build your custom cable assemblies for you and ship same-day.

Mechanical Specifications

Size
Length 1.575 in [40.01 mm]
Width/Dia. 0.688 in [17.48 mm]
.
Weight 0.055 lbs [24.95 g]
.
Material Specifications
Description Material Plating
Contact Brass Gold
30 µin minimum

Insulation PTFE
Body Brass Nickel
100 µin minimum
.

Click the following link (or enter part number in “SEARCH” on website) to obtain additional part information including price,
inventory and certifications: MHV Female Bulkhead Mount Connector Crimp/Solder Attachment for RG58, RG303, RG141,
PE-C195, PE-P195, LMR-195, 0.195 inch PE44108

PE44108 REV 1.1 1
