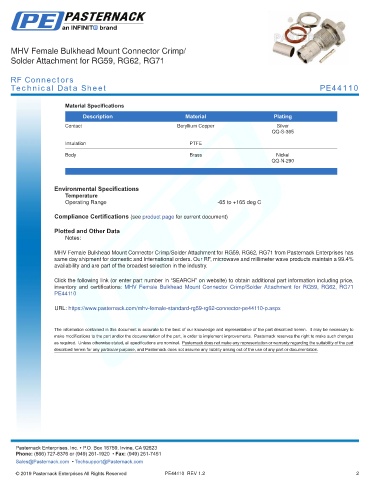

MHV Female Bulkhead Mount Connector Crimp/
Solder Attachment for RG59, RG62, RG71

RF Connectors
Technical Data Sheet PE44110

Material Specifications
Description Material Plating
Contact Beryllium Copper Silver
QQ-S-365

Insulation PTFE
Body Brass Nickel
QQ-N-290

.

Environmental Specifications
Temperature
Operating Range -65 to +165 deg C

Compliance Certifications (see product page for current document)

Plotted and Other Data
Notes:

MHV Female Bulkhead Mount Connector Crimp/Solder Attachment for RG59, RG62, RG71 from Pasternack Enterprises has
same day shipment for domestic and International orders. Our RF, microwave and millimeter wave products maintain a 99.4%
availability and are part of the broadest selection in the industry.

Click the following link (or enter part number in “SEARCH” on website) to obtain additional part information including price,
inventory and certifications: MHV Female Bulkhead Mount Connector Crimp/Solder Attachment for RG59, RG62, RG71
PE44110

URL: https://www.pasternack.com/mhv-female-standard-rg59-rg62-connector-pe44110-p.aspx

-
Pasternack does not make
any representation or warranty regarding the suitability of the part described herein for any particular purpose, and Pasternack does not assume any liability arising out of the use of any part or documentation.

PE44110 REV 1.2 2
