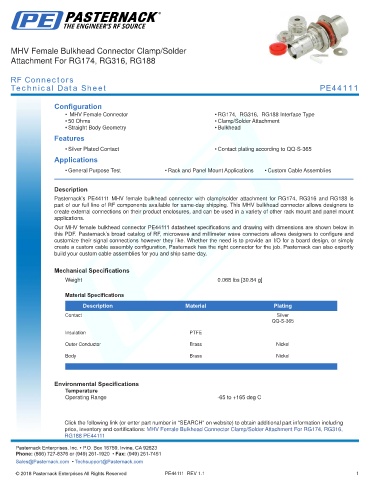

MHV Female Bulkhead Connector Clamp/Solder
Attachment For RG174, RG316, RG188

RF Connectors
Technical Data Sheet PE44111

Configuration
• MHV Female Connector • RG174, RG316, RG188 Interface Type
• 50 Ohms • Clamp/Solder Attachment
• Straight Body Geometry • Bulkhead
Features
• Silver Plated Contact • Contact plating according to QQ-S-365
Applications
• General Purpose Test • Rack and Panel Mount Applications • Custom Cable Assemblies
.
Description
Pasternack’s PE44111 MHV female bulkhead connector with clamp/solder attachment for RG174, RG316 and RG188 is
part of our full line of RF components available for same-day shipping. This MHV bulkhead connector allows designers to
create external connections on their product enclosures, and can be used in a variety of other rack mount and panel mount
applications.
Our MHV female bulkhead connector PE44111 datasheet specifications and drawing with dimensions are shown below in
this PDF. Pasternack’s broad catalog of RF, microwave and millimeter wave connectors allows designers to configure and
customize their signal connections however they like. Whether the need is to provide an I/O for a board design, or simply
create a custom cable assembly configuration, Pasternack has the right connector for the job. Pasternack can also expertly
build your custom cable assemblies for you and ship same-day.

Mechanical Specifications
.
Weight 0.068 lbs [30.84 g]
.
Material Specifications
Description Material Plating
Contact Silver
QQ-S-365
Insulation PTFE
Outer Conductor Brass Nickel

Body Brass Nickel
.

Environmental Specifications
Temperature
Operating Range -65 to +165 deg C

Click the following link (or enter part number in “SEARCH” on website) to obtain additional part information including
price, inventory and certifications: MHV Female Bulkhead Connector Clamp/Solder Attachment For RG174, RG316, -
RG188 PE44111 Pasternack does not make
any representation or warranty regarding the suitability of the part described herein for any particular purpose, and Pasternack does not assume any liability arising out of the use of any part or documentation.

PE44111 REV 1.1 1
