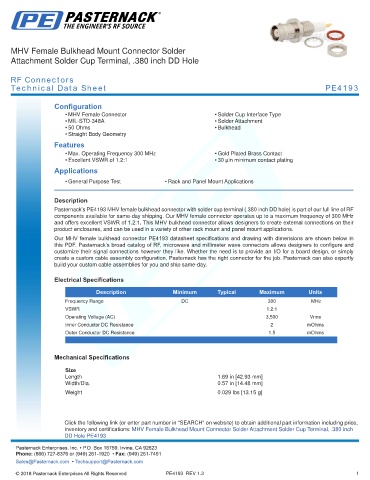

MHV Female Bulkhead Mount Connector Solder
Attachment Solder Cup Terminal, .380 inch DD Hole

RF Connectors
Technical Data Sheet PE4193

Configuration
• MHV Female Connector • Solder Cup Interface Type
• MIL-STD-348A • Solder Attachment
• 50 Ohms • Bulkhead
• Straight Body Geometry
Features
• Max. Operating Frequency 300 MHz • Gold Plated Brass Contact
• Excellent VSWR of 1.2:1 • 30 µin minimum contact plating
Applications

• General Purpose Test • Rack and Panel Mount Applications
.
Description
Pasternack’s PE4193 MHV female bulkhead connector with solder cup terminal (.380 inch DD hole) is part of our full line of RF
components available for same-day shipping. Our MHV female connector operates up to a maximum frequency of 300 MHz
and offers excellent VSWR of 1.2:1. This MHV bulkhead connector allows designers to create external connections on their
product enclosures, and can be used in a variety of other rack mount and panel mount applications.
Our MHV female bulkhead connector PE4193 datasheet specifications and drawing with dimensions are shown below in
this PDF. Pasternack’s broad catalog of RF, microwave and millimeter wave connectors allows designers to configure and
customize their signal connections however they like. Whether the need is to provide an I/O for a board design, or simply
create a custom cable assembly configuration, Pasternack has the right connector for the job. Pasternack can also expertly
build your custom cable assemblies for you and ship same-day.

Electrical Specifications

Description Minimum Typical Maximum Units
Frequency Range DC 300 MHz
VSWR 1.2:1
Operating Voltage (AC) 3,500 Vrms
Inner Conductor DC Resistance 2 mOhms
Outer Conductor DC Resistance 1.5 mOhms
.

Mechanical Specifications

Size
Length 1.69 in [42.93 mm]
Width/Dia. 0.57 in [14.48 mm]
.
Weight 0.029 lbs [13.15 g]
.

Click the following link (or enter part number in “SEARCH” on website) to obtain additional part information including price,
inventory and certifications: MHV Female Bulkhead Mount Connector Solder Attachment Solder Cup Terminal, .380 inch -
DD Hole PE4193 Pasternack does not make
any representation or warranty regarding the suitability of the part described herein for any particular purpose, and Pasternack does not assume any liability arising out of the use of any part or documentation.

PE4193 REV 1.3 1
