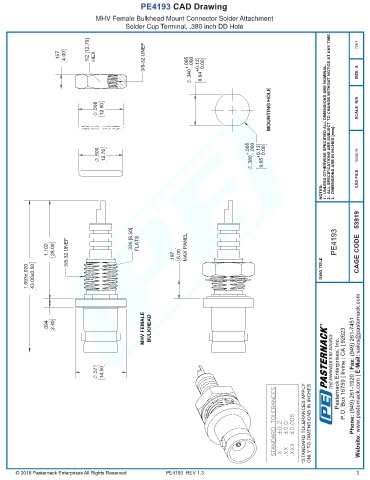

PE4193 CAD Drawing
MHV Female Bulkhead Mount Connector Solder Attachment
Solder Cup Terminal, .380 inch DD Hole

1/2 [12.70] 7361
.157 4.00 HEX 3/8-32 UNEF
.340 +.005 -.000 8.64 +0.13 0.00 SIZE A

MOUNTING HOLE 2. ALL SPECIFICATIONS ARE SUBJECT TO CHANGE WITHOUT NOTICE AT ANY TIME.

.508 SCALE N/A
12.90

.500 12.70 .380 +.005 -.000 9.65 +0.13 0.00 1. UNLESS OTHERWISE SPECIFIED ALL DIMENSIONS ARE NOMINAL. 3. DIMENSIONS ARE IN INCHES [mm]. 10/26/18

NOTES: CAD FILE

.335 [8.50] FLATS PE4193 CAGE CODE 53919
1.102 28.00 3/8-32 UNEF 5.00 MAX PANEL

.197
1.693±.020 43.00±0.50 DWG TITLE

.094 2.40 MHV FEMALE BULKHEAD R
P.O. Box 16759 | Irvine | CA | 92623

THE ENGINEER'S RF SOURCE
Pasternack Enterprises, Inc.

.571 14.50 Pasternack does not make Phone: (949) 261-1920 | Fax: (949) 261-7451 Website: www.pasternack.com | E-Mail: sales@pasternack.com

STANDARD TOLERANCES *STANDARD TOLERANCES APPLY ONLY TO DIMENSIONS IN INCHES -

.XXX ±0.005
.XX ±0.01
.X ±0.2

any representation or warranty regarding the suitability of the part described herein for any particular purpose, and Pasternack does not assume any liability arising out of the use of any part or documentation.

PE4193 REV 1.3 3
