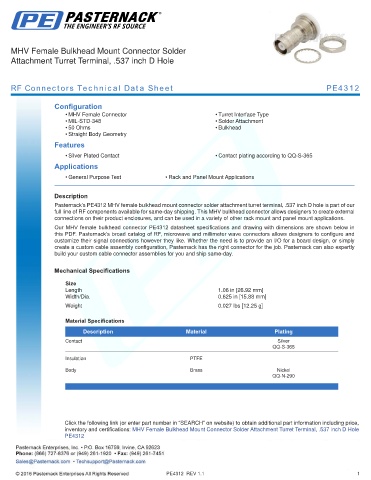

MHV Female Bulkhead Mount Connector Solder
Attachment Turret Terminal, .537 inch D Hole

RF Connectors Technical Data Sheet PE4312

Configuration
• MHV Female Connector • Turret Interface Type
• MIL-STD-348 • Solder Attachment
• 50 Ohms • Bulkhead
• Straight Body Geometry
Features
• Silver Plated Contact • Contact plating according to QQ-S-365
Applications

• General Purpose Test • Rack and Panel Mount Applications
.
Description
Pasternack’s PE4312 MHV female bulkhead mount connector solder attachment turret terminal, .537 inch D hole is part of our
full line of RF components available for same-day shipping. This MHV bulkhead connector allows designers to create external
connections on their product enclosures, and can be used in a variety of other rack mount and panel mount applications.
Our MHV female bulkhead connector PE4312 datasheet specifications and drawing with dimensions are shown below in
this PDF. Pasternack’s broad catalog of RF, microwave and millimeter wave connectors allows designers to configure and
customize their signal connections however they like. Whether the need is to provide an I/O for a board design, or simply
create a custom cable assembly configuration, Pasternack has the right connector for the job. Pasternack can also expertly
build your custom cable connector assemblies for you and ship same-day.

Mechanical Specifications

Size
Length 1.06 in [26.92 mm]
Width/Dia. 0.625 in [15.88 mm]
.
Weight 0.027 lbs [12.25 g]
.
Material Specifications

Description Material Plating
Contact Silver
QQ-S-365
Insulation PTFE

Body Brass Nickel
QQ-N-290
.

Click the following link (or enter part number in “SEARCH” on website) to obtain additional part information including price,
inventory and certifications: MHV Female Bulkhead Mount Connector Solder Attachment Turret Terminal, .537 inch D Hole
PE4312
