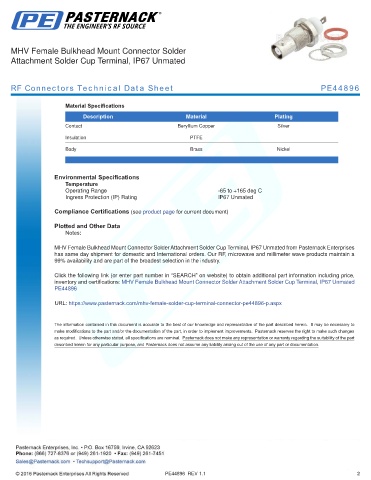

MHV Female Bulkhead Mount Connector Solder
Attachment Solder Cup Terminal, IP67 Unmated

RF Connectors Technical Data Sheet PE44896

Material Specifications
Description Material Plating
Contact Beryllium Copper Silver

Insulation PTFE
Body Brass Nickel
.

Environmental Specifications
Temperature
Operating Range -65 to +165 deg C
Ingress Protection (IP) Rating IP67 Unmated

Compliance Certifications (see product page for current document)

Plotted and Other Data
Notes:

MHV Female Bulkhead Mount Connector Solder Attachment Solder Cup Terminal, IP67 Unmated from Pasternack Enterprises
has same day shipment for domestic and International orders. Our RF, microwave and millimeter wave products maintain a
99% availability and are part of the broadest selection in the industry.

Click the following link (or enter part number in “SEARCH” on website) to obtain additional part information including price,
inventory and certifications: MHV Female Bulkhead Mount Connector Solder Attachment Solder Cup Terminal, IP67 Unmated
PE44896

URL: https://www.pasternack.com/mhv-female-solder-cup-terminal-connector-pe44896-p.aspx

PE44896 REV 1.1 2
