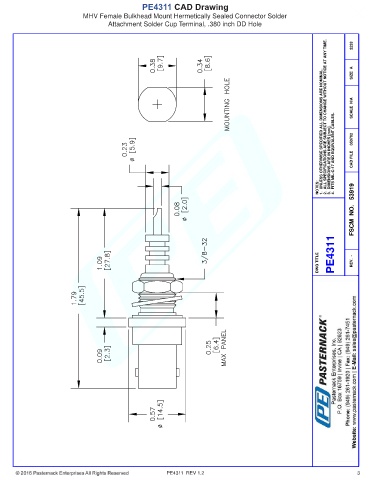

PE4311 CAD Drawing
MHV Female Bulkhead Mount Hermetically Sealed Connector Solder
Attachment Solder Cup Terminal, .380 inch DD Hole

2. ALL SPECIFICATIONS ARE SUBJECT TO CHANGE WITHOUT NOTICE AT ANY TIME.
2233

SIZE A
1. UNLESS OTHERWISE SPECIFIED ALL DIMENSIONS ARE NOMINAL.

SCALE N/A

3. DIMENSIONS ARE IN INCHES [mm]. 4. FITS MIL-C-17 AND EQUIVALENT CABLES. 050702 CAD FILE

NOTES:
FSCM NO. 53919

DWG TITLE PE4311 REV. -

PE4311 REV 1.2 3
