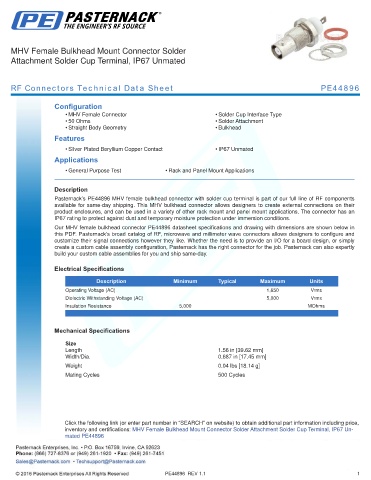

MHV Female Bulkhead Mount Connector Solder
Attachment Solder Cup Terminal, IP67 Unmated

RF Connectors Technical Data Sheet PE44896

Configuration
• MHV Female Connector • Solder Cup Interface Type
• 50 Ohms • Solder Attachment
• Straight Body Geometry • Bulkhead
Features
• Silver Plated Beryllium Copper Contact • IP67 Unmated
Applications
• General Purpose Test • Rack and Panel Mount Applications
.
Description
Pasternack’s PE44896 MHV female bulkhead connector with solder cup terminal is part of our full line of RF components
available for same-day shipping. This MHV bulkhead connector allows designers to create external connections on their
product enclosures, and can be used in a variety of other rack mount and panel mount applications. The connector has an
IP67 rating to protect against dust and temporary moisture protection under immersion conditions.
Our MHV female bulkhead connector PE44896 datasheet specifications and drawing with dimensions are shown below in
this PDF. Pasternack’s broad catalog of RF, microwave and millimeter wave connectors allows designers to configure and
customize their signal connections however they like. Whether the need is to provide an I/O for a board design, or simply
create a custom cable assembly configuration, Pasternack has the right connector for the job. Pasternack can also expertly
build your custom cable assemblies for you and ship same-day.

Electrical Specifications
Description Minimum Typical Maximum Units
Operating Voltage (AC) 1,650 Vrms
Dielectric Withstanding Voltage (AC) 5,000 Vrms
Insulation Resistance 5,000 MOhms
.

Mechanical Specifications

Size
Length 1.56 in [39.62 mm]
Width/Dia. 0.687 in [17.45 mm]
.
Weight 0.04 lbs [18.14 g]
.
Mating Cycles 500 Cycles

Click the following link (or enter part number in “SEARCH” on website) to obtain additional part information including price,
inventory and certifications: MHV Female Bulkhead Mount Connector Solder Attachment Solder Cup Terminal, IP67 Un-
mated PE44896

PE44896 REV 1.1 1
