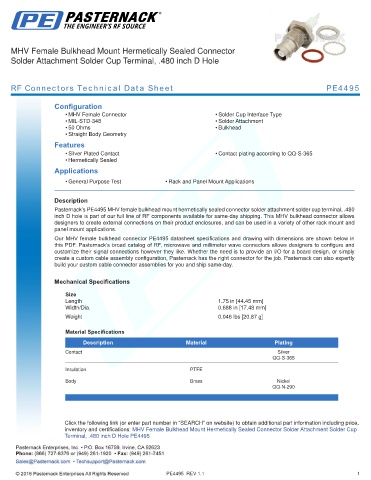

MHV Female Bulkhead Mount Hermetically Sealed Connector
Solder Attachment Solder Cup Terminal, .480 inch D Hole

RF Connectors Technical Data Sheet PE4495

Configuration
• MHV Female Connector • Solder Cup Interface Type
• MIL-STD-348 • Solder Attachment
• 50 Ohms • Bulkhead
• Straight Body Geometry
Features
• Silver Plated Contact • Contact plating according to QQ-S-365
• Hermetically Sealed
Applications

• General Purpose Test • Rack and Panel Mount Applications
.
Description
Pasternack’s PE4495 MHV female bulkhead mount hermetically sealed connector solder attachment solder cup terminal, .480
inch D hole is part of our full line of RF components available for same-day shipping. This MHV bulkhead connector allows
designers to create external connections on their product enclosures, and can be used in a variety of other rack mount and
panel mount applications.
Our MHV female bulkhead connector PE4495 datasheet specifications and drawing with dimensions are shown below in
this PDF. Pasternack’s broad catalog of RF, microwave and millimeter wave connectors allows designers to configure and
customize their signal connections however they like. Whether the need is to provide an I/O for a board design, or simply
create a custom cable assembly configuration, Pasternack has the right connector for the job. Pasternack can also expertly
build your custom cable connector assemblies for you and ship same-day.

Mechanical Specifications

Size
Length 1.75 in [44.45 mm]
Width/Dia. 0.688 in [17.48 mm]
.
Weight 0.046 lbs [20.87 g]
.
Material Specifications
Description Material Plating
Contact Silver
QQ-S-365

Insulation PTFE
Body Brass Nickel
QQ-N-290
.

Click the following link (or enter part number in “SEARCH” on website) to obtain additional part information including price,
inventory and certifications: MHV Female Bulkhead Mount Hermetically Sealed Connector Solder Attachment Solder Cup
Terminal, .480 inch D Hole PE4495

PE4495 REV 1.1 1
