MHV Female Connector Clamp/Solder Attachment
4 Hole Flange For RG55, RG58, RG141, RG142,
RG223, RG400, .500 inch Threaded Hole Spacing

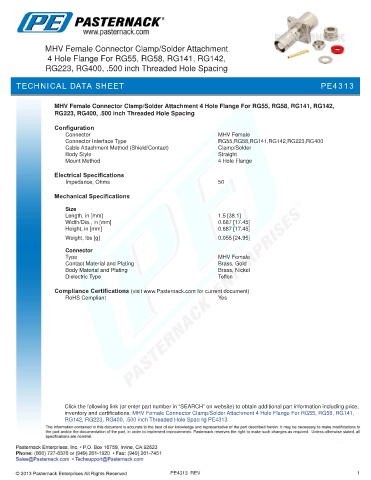

TECHNICAL DATA SHEET PE4313

MHV Female Connector Clamp/Solder Attachment 4 Hole Flange For RG55, RG58, RG141, RG142,
RG223, RG400, .500 inch Threaded Hole Spacing

Configuration
Connector MHV Female
Connector Interface Type RG55,RG58,RG141,RG142,RG223,RG400
Cable Attachment Method (Shield/Contact) Clamp/Solder
Body Style Straight
Mount Method 4 Hole Flange

Electrical Specifications
Impedance, Ohms 50

Mechanical Specifications
Size
Length, in [mm] 1.5 [38.1]
Width/Dia., in [mm] 0.687 [17.45]
Height, in [mm] 0.687 [17.45]
.
Weight, lbs [g] 0.055 [24.95]
Connector
Type MHV Female
Contact Material and Plating Brass, Gold
Body Material and Plating Brass, Nickel
Dielectric Type Teflon

Compliance Certifications (visit www.Pasternack.com for current document)
RoHS Compliant Yes

Click the following link (or enter part number in “SEARCH” on website) to obtain additional part information including price,
inventory and certifications: MHV Female Connector Clamp/Solder Attachment 4 Hole Flange For RG55, RG58, RG141,
RG142, RG223, RG400, .500 inch Threaded Hole Spacing PE4313

PE4313 REV 1
