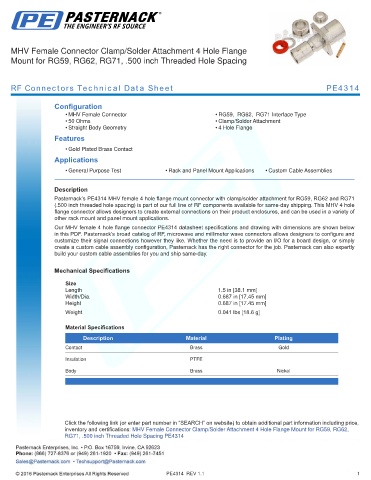

MHV Female Connector Clamp/Solder Attachment 4 Hole Flange
Mount for RG59, RG62, RG71, .500 inch Threaded Hole Spacing

RF Connectors Technical Data Sheet PE4314

Configuration
• MHV Female Connector • RG59, RG62, RG71 Interface Type
• 50 Ohms • Clamp/Solder Attachment
• Straight Body Geometry • 4 Hole Flange
Features
• Gold Plated Brass Contact
Applications
• General Purpose Test • Rack and Panel Mount Applications • Custom Cable Assemblies
.
Description
Pasternack’s PE4314 MHV female 4 hole flange mount connector with clamp/solder attachment for RG59, RG62 and RG71
(.500 inch threaded hole spacing) is part of our full line of RF components available for same-day shipping. This MHV 4 hole
flange connector allows designers to create external connections on their product enclosures, and can be used in a variety of
other rack mount and panel mount applications.
Our MHV female 4 hole flange connector PE4314 datasheet specifications and drawing with dimensions are shown below
in this PDF. Pasternack’s broad catalog of RF, microwave and millimeter wave connectors allows designers to configure and
customize their signal connections however they like. Whether the need is to provide an I/O for a board design, or simply
create a custom cable assembly configuration, Pasternack has the right connector for the job. Pasternack can also expertly
build your custom cable assemblies for you and ship same-day.

Mechanical Specifications

Size
Length 1.5 in [38.1 mm]
Width/Dia. 0.687 in [17.45 mm]
Height 0.687 in [17.45 mm]
.
Weight 0.041 lbs [18.6 g]
.
Material Specifications
Description Material Plating
Contact Brass Gold
Insulation PTFE

Body Brass Nickel
.

Click the following link (or enter part number in “SEARCH” on website) to obtain additional part information including price,
inventory and certifications: MHV Female Connector Clamp/Solder Attachment 4 Hole Flange Mount for RG59, RG62,
RG71, .500 inch Threaded Hole Spacing PE4314

PE4314 REV 1.1 1
