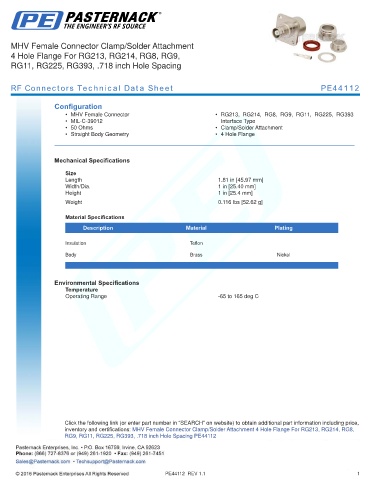

MHV Female Connector Clamp/Solder Attachment
4 Hole Flange For RG213, RG214, RG8, RG9,
RG11, RG225, RG393, .718 inch Hole Spacing
RF Connectors Technical Data Sheet PE44112
Configuration
• MHV Female Connector • RG213, RG214, RG8, RG9, RG11, RG225, RG393
• MIL-C-39012 Interface Type
• 50 Ohms • Clamp/Solder Attachment
• Straight Body Geometry • 4 Hole Flange
.
Mechanical Specifications
Size
Length 1.81 in [45.97 mm]
Width/Dia. 1 in [25.40 mm]
Height 1 in [25.4 mm]
.
Weight 0.116 lbs [52.62 g]
.
Material Specifications
Description Material Plating
Insulation Teflon
Body Brass Nickel
.
Environmental Specifications
Temperature
Operating Range -65 to 165 deg C
Click the following link (or enter part number in “SEARCH” on website) to obtain additional part information including price,
inventory and certifications: MHV Female Connector Clamp/Solder Attachment 4 Hole Flange For RG213, RG214, RG8,
RG9, RG11, RG225, RG393, .718 inch Hole Spacing PE44112
PE44112 REV 1.1 1
