Page 2063 - 1.0/2.3 to SHV RF Connector Datasheets
P. 2063

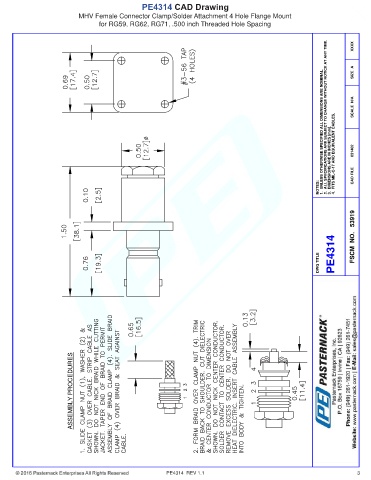

PE4314 CAD Drawing
MHV Female Connector Clamp/Solder Attachment 4 Hole Flange Mount
for RG59, RG62, RG71, .500 inch Threaded Hole Spacing
2. ALL SPECIFICATIONS ARE SUBJECT TO CHANGE WITHOUT NOTICE AT ANY TIME.
XXXX
SIZE A
1. UNLESS OTHERWISE SPECIFIED ALL DIMENSIONS ARE NOMINAL.
SCALE N/A
3. DIMENSIONS ARE IN INCHES [mm]. 4. FITS MIL-C-17 AND EQUIVALENT CABLES. 051402
NOTES: CAD FILE
DWG TITLE PE4314 FSCM NO. 53919
ASSEMBLY PROCEDURES
PE4314 REV 1.1 3
