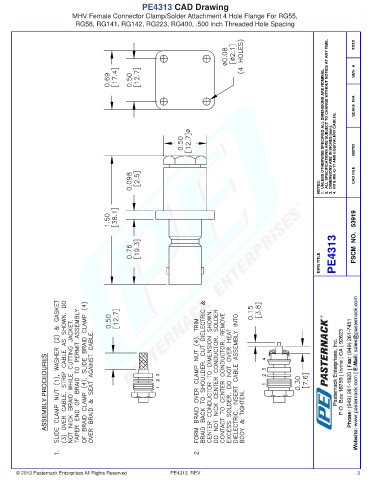

PE4313 CAD Drawing
MHV Female Connector Clamp/Solder Attachment 4 Hole Flange For RG55,
RG58, RG141, RG142, RG223, RG400, .500 inch Threaded Hole Spacing

2. ALL SPECIFICATIONS ARE SUBJECT TO CHANGE WITHOUT NOTICE AT ANY TIME.
XXXX

SIZE A
1. UNLESS OTHERWISE SPECIFIED ALL DIMENSIONS ARE NOMINAL.

SCALE N/A

3. DIMENSIONS ARE IN INCHES [mm]. 4. FITS MIL-C-17 AND EQUIVALENT CABLES. 050702

NOTES: CAD FILE

DWG TITLE PE4313 FSCM NO. 53919

ASSEMBLY PROCEDURES

© 2013 Pasternack Enterprises All Rights Reserved PE4313 REV 3
