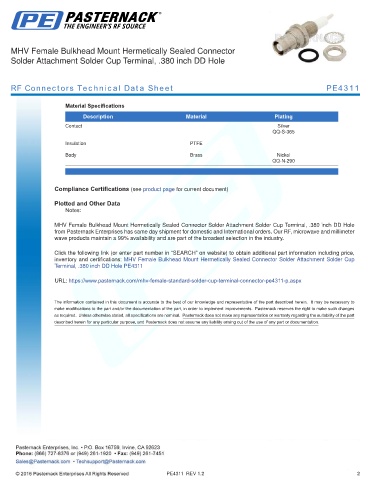

MHV Female Bulkhead Mount Hermetically Sealed Connector
Solder Attachment Solder Cup Terminal, .380 inch DD Hole

RF Connectors Technical Data Sheet PE4311

Material Specifications
Description Material Plating
Contact Silver
QQ-S-365

Insulation PTFE
Body Brass Nickel
QQ-N-290

.

Compliance Certifications (see product page for current document)

Plotted and Other Data
Notes:

MHV Female Bulkhead Mount Hermetically Sealed Connector Solder Attachment Solder Cup Terminal, .380 inch DD Hole
from Pasternack Enterprises has same day shipment for domestic and International orders. Our RF, microwave and millimeter
wave products maintain a 99% availability and are part of the broadest selection in the industry.

Click the following link (or enter part number in “SEARCH” on website) to obtain additional part information including price,
inventory and certifications: MHV Female Bulkhead Mount Hermetically Sealed Connector Solder Attachment Solder Cup
Terminal, .380 inch DD Hole PE4311

URL: https://www.pasternack.com/mhv-female-standard-solder-cup-terminal-connector-pe4311-p.aspx

PE4311 REV 1.2 2
