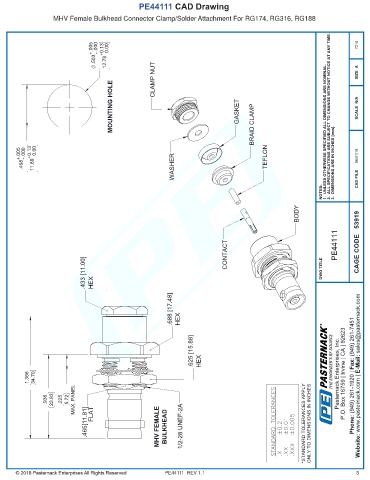

PE44111 CAD Drawing
MHV Female Bulkhead Connector Clamp/Solder Attachment For RG174, RG316, RG188

.503 +.005 -.000 12.78 +0.13 0.00 7316 SIZE A

MOUNTING HOLE CLAMP NUT GASKET 2. ALL SPECIFICATIONS ARE SUBJECT TO CHANGE WITHOUT NOTICE AT ANY TIME. SCALE N/A

BRAID CLAMP 1. UNLESS OTHERWISE SPECIFIED ALL DIMENSIONS ARE NOMINAL.
.468 +.005 -.000 11.89 +0.13 0.00 TEFLON 3. DIMENSIONS ARE IN INCHES [mm]. 06/01/18

WASHER CAD FILE
NOTES:

BODY

CONTACT PE44111 CAGE CODE 53919

.433 [11.00] HEX DWG TITLE

.688 [17.48] HEX R

P.O. Box 16759 | Irvine | CA | 92623
.625 [15.88]
Pasternack Enterprises, Inc.

HEX THE ENGINEER'S RF SOURCE
1.366 34.70 Pasternack does not make Phone: (949) 261-1920 | Fax: (949) 261-7451 Website: www.pasternack.com | E-Mail: sales@pasternack.com

.938 23.83 .225 5.72 MAX. PANEL
.465[11.81] MHV FEMALE BULKHEAD 1/2-28 UNEF-2A STANDARD TOLERANCES *STANDARD TOLERANCES APPLY ONLY TO DIMENSIONS IN INCHES -
FLAT
.XXX ±0.005
.XX ±0.01
.X ±0.2
any representation or warranty regarding the suitability of the part described herein for any particular purpose, and Pasternack does not assume any liability arising out of the use of any part or documentation.

PE44111 REV 1.1 5
