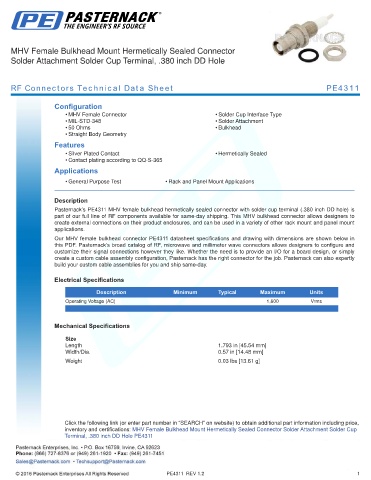

MHV Female Bulkhead Mount Hermetically Sealed Connector
Solder Attachment Solder Cup Terminal, .380 inch DD Hole

RF Connectors Technical Data Sheet PE4311

Configuration
• MHV Female Connector • Solder Cup Interface Type
• MIL-STD-348 • Solder Attachment
• 50 Ohms • Bulkhead
• Straight Body Geometry
Features
• Silver Plated Contact • Hermetically Sealed
• Contact plating according to QQ-S-365
Applications

• General Purpose Test • Rack and Panel Mount Applications
.
Description
Pasternack’s PE4311 MHV female bulkhead hermetically sealed connector with solder cup terminal (.380 inch DD hole) is
part of our full line of RF components available for same-day shipping. This MHV bulkhead connector allows designers to
create external connections on their product enclosures, and can be used in a variety of other rack mount and panel mount
applications.
Our MHV female bulkhead connector PE4311 datasheet specifications and drawing with dimensions are shown below in
this PDF. Pasternack’s broad catalog of RF, microwave and millimeter wave connectors allows designers to configure and
customize their signal connections however they like. Whether the need is to provide an I/O for a board design, or simply
create a custom cable assembly configuration, Pasternack has the right connector for the job. Pasternack can also expertly
build your custom cable assemblies for you and ship same-day.

Electrical Specifications

Description Minimum Typical Maximum Units
Operating Voltage (AC) 1,600 Vrms
.

Mechanical Specifications

Size
Length 1.793 in [45.54 mm]
Width/Dia. 0.57 in [14.48 mm]
.
Weight 0.03 lbs [13.61 g]
.

Click the following link (or enter part number in “SEARCH” on website) to obtain additional part information including price,
inventory and certifications: MHV Female Bulkhead Mount Hermetically Sealed Connector Solder Attachment Solder Cup
Terminal, .380 inch DD Hole PE4311
