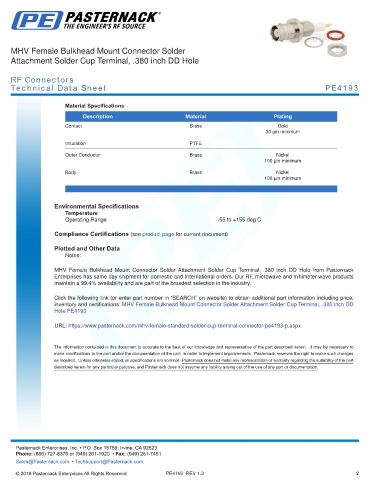

MHV Female Bulkhead Mount Connector Solder
Attachment Solder Cup Terminal, .380 inch DD Hole

RF Connectors
Technical Data Sheet PE4193

Material Specifications
Description Material Plating
Contact Brass Gold
30 µin minimum

Insulation PTFE
Outer Conductor Brass Nickel
100 µin minimum

Body Brass Nickel
100 µin minimum
.

Environmental Specifications
Temperature
Operating Range -55 to +155 deg C

Compliance Certifications (see product page for current document)
Plotted and Other Data
Notes:

MHV Female Bulkhead Mount Connector Solder Attachment Solder Cup Terminal, .380 inch DD Hole from Pasternack
Enterprises has same day shipment for domestic and International orders. Our RF, microwave and millimeter wave products
maintain a 99.4% availability and are part of the broadest selection in the industry.

Click the following link (or enter part number in “SEARCH” on website) to obtain additional part information including price,
inventory and certifications: MHV Female Bulkhead Mount Connector Solder Attachment Solder Cup Terminal, .380 inch DD
Hole PE4193

URL: https://www.pasternack.com/mhv-female-standard-solder-cup-terminal-connector-pe4193-p.aspx

-
Pasternack does not make
any representation or warranty regarding the suitability of the part described herein for any particular purpose, and Pasternack does not assume any liability arising out of the use of any part or documentation.

PE4193 REV 1.3 2
