MHV Female Bulkhead Connector Clamp/Solder
Attachment For RG174, RG316, RG188

RF Connectors
Technical Data Sheet PE44111

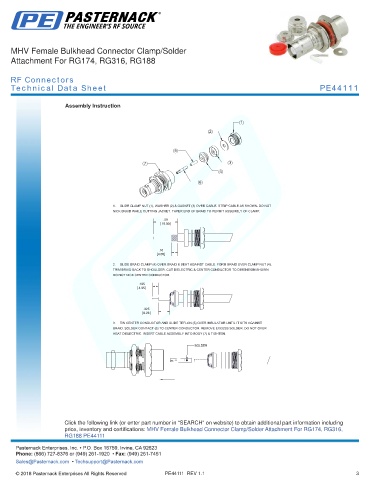

Assembly Instruction

1
2

5

7 3
4
6

1. SLIDE CLAMP NUT (1), WASHER (2) & GASKET (3) OVER CABLE. STRIP CABLE AS SHOWN. DO NOT
NICK BRAID WHILE CUTTING JACKET. TAPER END OF BRAID TO PERMIT ASSEMBLY OF CLAMP.
.59
15.00

.16
4.00
2. SLIDE BRAID CLAMP (4) OVER BRAID & SEAT AGAINST CABLE. FORM BRAID OVER CLAMP NUT (4).
TRIM BRAID BACK TO SHOULDER. CUT DIELECTRIC & CENTER CONDUCTOR TO DIMENSION SHOWN.
DO NOT NICK CENTER CONDUCTOR.
.195
4.95

.325
8.26
3. TIN CENTER CONDUCTOR AND SLIDE TEFLON (5) OVER INSULATOR UNTIL IT SITS AGAINST
BRAID. SOLDER CONTACT (6) TO CENTER CONDUCTOR. REMOVE EXCESS SOLDER. DO NOT OVER
HEAT DIELECTRIC. INSERT CABLE ASSEMBLY INTO BODY (7) & TIGHTEN.

SOLDER

Click the following link (or enter part number in “SEARCH” on website) to obtain additional part information including
price, inventory and certifications: MHV Female Bulkhead Connector Clamp/Solder Attachment For RG174, RG316, -
RG188 PE44111 Pasternack does not make
any representation or warranty regarding the suitability of the part described herein for any particular purpose, and Pasternack does not assume any liability arising out of the use of any part or documentation.

PE44111 REV 1.1 3
