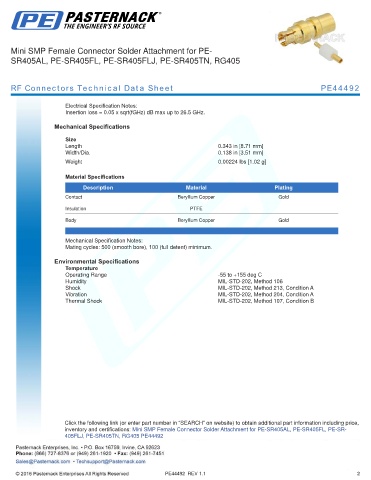

Mini SMP Female Connector Solder Attachment for PE-
SR405AL, PE-SR405FL, PE-SR405FLJ, PE-SR405TN, RG405

RF Connectors Technical Data Sheet PE44492

Electrical Specification Notes:
Insertion loss = 0.05 x sqrt(fGHz) dB max up to 26.5 GHz.

Mechanical Specifications

Size
Length 0.343 in [8.71 mm]
Width/Dia. 0.138 in [3.51 mm]
.
Weight 0.00224 lbs [1.02 g]
.
Material Specifications
Description Material Plating
Contact Beryllium Copper Gold
Insulation PTFE

Body Beryllium Copper Gold
.
Mechanical Specification Notes:
Mating cycles: 500 (smooth bore), 100 (full detent) minimum.

Environmental Specifications
Temperature
Operating Range -55 to +155 deg C
Humidity MIL-STD-202, Method 106
Shock MIL-STD-202, Method 213, Condition A
Vibration MIL-STD-202, Method 204, Condition A
Thermal Shock MIL-STD-202, Method 107, Condition B

Click the following link (or enter part number in “SEARCH” on website) to obtain additional part information including price,
inventory and certifications: Mini SMP Female Connector Solder Attachment for PE-SR405AL, PE-SR405FL, PE-SR-
405FLJ, PE-SR405TN, RG405 PE44492

PE44492 REV 1.1 2
