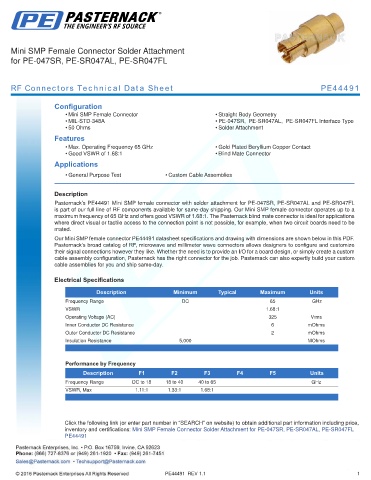

Mini SMP Female Connector Solder Attachment
for PE-047SR, PE-SR047AL, PE-SR047FL

RF Connectors Technical Data Sheet PE44491

Configuration
• Mini SMP Female Connector • Straight Body Geometry
• MIL-STD-348A • PE-047SR, PE-SR047AL, PE-SR047FL Interface Type
• 50 Ohms • Solder Attachment
Features
• Max. Operating Frequency 65 GHz • Gold Plated Beryllium Copper Contact
• Good VSWR of 1.68:1 • Blind Mate Connector
Applications
• General Purpose Test • Custom Cable Assemblies
.
Description
Pasternack’s PE44491 Mini SMP female connector with solder attachment for PE-047SR, PE-SR047AL and PE-SR047FL
is part of our full line of RF components available for same-day shipping. Our Mini SMP female connector operates up to a
maximum frequency of 65 GHz and offers good VSWR of 1.68:1. The Pasternack blind mate connector is ideal for applications
where direct visual or tactile access to the connection point is not possible, for example, when two circuit boards need to be
mated.
Our Mini SMP female connector PE44491 datasheet specifications and drawing with dimensions are shown below in this PDF.
Pasternack’s broad catalog of RF, microwave and millimeter wave connectors allows designers to configure and customize
their signal connections however they like. Whether the need is to provide an I/O for a board design, or simply create a custom
cable assembly configuration, Pasternack has the right connector for the job. Pasternack can also expertly build your custom
cable assemblies for you and ship same-day.

Electrical Specifications

Description Minimum Typical Maximum Units
Frequency Range DC 65 GHz
VSWR 1.68:1
Operating Voltage (AC) 325 Vrms
Inner Conductor DC Resistance 6 mOhms
Outer Conductor DC Resistance 2 mOhms
Insulation Resistance 5,000 MOhms
.

Performance by Frequency
Description F1 F2 F3 F4 F5 Units
Frequency Range DC to 18 18 to 40 40 to 65 GHz
VSWR, Max 1.11:1 1.33:1 1.68:1
.

Click the following link (or enter part number in “SEARCH” on website) to obtain additional part information including price,
inventory and certifications: Mini SMP Female Connector Solder Attachment for PE-047SR, PE-SR047AL, PE-SR047FL
PE44491

PE44491 REV 1.1 1
