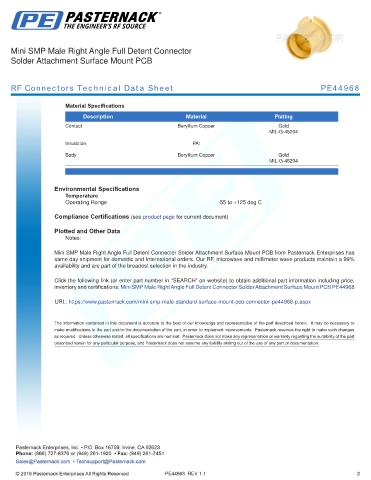

Mini SMP Male Right Angle Full Detent Connector
Solder Attachment Surface Mount PCB

RF Connectors Technical Data Sheet PE44968

Material Specifications
Description Material Plating
Contact Beryllium Copper Gold
MIL-G-45204

Insulation PAI
Body Beryllium Copper Gold
MIL-G-45204

.

Environmental Specifications
Temperature
Operating Range -55 to +125 deg C

Compliance Certifications (see product page for current document)

Plotted and Other Data
Notes:

Mini SMP Male Right Angle Full Detent Connector Solder Attachment Surface Mount PCB from Pasternack Enterprises has
same day shipment for domestic and International orders. Our RF, microwave and millimeter wave products maintain a 99%
availability and are part of the broadest selection in the industry.

Click the following link (or enter part number in “SEARCH” on website) to obtain additional part information including price,
inventory and certifications: Mini SMP Male Right Angle Full Detent Connector Solder Attachment Surface Mount PCB PE44968

URL: https://www.pasternack.com/mini-smp-male-standard-surface-mount-pcb-connector-pe44968-p.aspx

PE44968 REV 1.1 2
