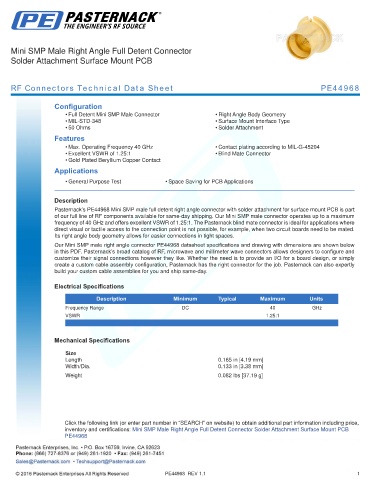

Mini SMP Male Right Angle Full Detent Connector
Solder Attachment Surface Mount PCB

RF Connectors Technical Data Sheet PE44968

Configuration
• Full Detent Mini SMP Male Connector • Right Angle Body Geometry
• MIL-STD-348 • Surface Mount Interface Type
• 50 Ohms • Solder Attachment
Features
• Max. Operating Frequency 40 GHz • Contact plating according to MIL-G-45204
• Excellent VSWR of 1.25:1 • Blind Mate Connector
• Gold Plated Beryllium Copper Contact
Applications

• General Purpose Test • Space Saving for PCB Applications
.
Description
Pasternack’s PE44968 Mini SMP male full detent right angle connector with solder attachment for surface mount PCB is part
of our full line of RF components available for same-day shipping. Our Mini SMP male connector operates up to a maximum
frequency of 40 GHz and offers excellent VSWR of 1.25:1. The Pasternack blind mate connector is ideal for applications where
direct visual or tactile access to the connection point is not possible, for example, when two circuit boards need to be mated.
Its right angle body geometry allows for easier connections in tight spaces.
Our Mini SMP male right angle connector PE44968 datasheet specifications and drawing with dimensions are shown below
in this PDF. Pasternack’s broad catalog of RF, microwave and millimeter wave connectors allows designers to configure and
customize their signal connections however they like. Whether the need is to provide an I/O for a board design, or simply
create a custom cable assembly configuration, Pasternack has the right connector for the job. Pasternack can also expertly
build your custom cable assemblies for you and ship same-day.

Electrical Specifications

Description Minimum Typical Maximum Units
Frequency Range DC 40 GHz
VSWR 1.25:1
.

Mechanical Specifications

Size
Length 0.165 in [4.19 mm]
Width/Dia. 0.133 in [3.38 mm]
.
Weight 0.082 lbs [37.19 g]
.

Click the following link (or enter part number in “SEARCH” on website) to obtain additional part information including price,
inventory and certifications: Mini SMP Male Right Angle Full Detent Connector Solder Attachment Surface Mount PCB
PE44968
