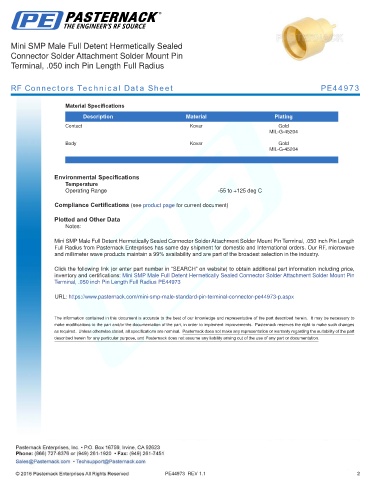

Mini SMP Male Full Detent Hermetically Sealed
Connector Solder Attachment Solder Mount Pin
Terminal, .050 inch Pin Length Full Radius

RF Connectors Technical Data Sheet PE44973

Material Specifications
Description Material Plating
Contact Kovar Gold
MIL-G-45204

Body Kovar Gold
MIL-G-45204
.

Environmental Specifications
Temperature
Operating Range -55 to +125 deg C

Compliance Certifications (see product page for current document)
Plotted and Other Data
Notes:

Mini SMP Male Full Detent Hermetically Sealed Connector Solder Attachment Solder Mount Pin Terminal, .050 inch Pin Length
Full Radius from Pasternack Enterprises has same day shipment for domestic and International orders. Our RF, microwave
and millimeter wave products maintain a 99% availability and are part of the broadest selection in the industry.

Click the following link (or enter part number in “SEARCH” on website) to obtain additional part information including price,
inventory and certifications: Mini SMP Male Full Detent Hermetically Sealed Connector Solder Attachment Solder Mount Pin
Terminal, .050 inch Pin Length Full Radius PE44973

URL: https://www.pasternack.com/mini-smp-male-standard-pin-terminal-connector-pe44973-p.aspx

PE44973 REV 1.1 2
