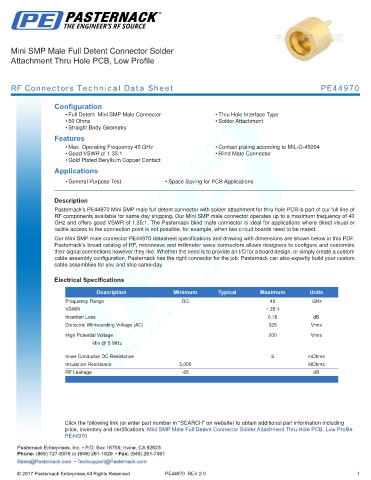

Mini SMP Male Full Detent Connector Solder
Attachment Thru Hole PCB, Low Profile

RF Connectors Technical Data Sheet PE44970

Configuration
• Full Detent Mini SMP Male Connector • Thru Hole Interface Type
• 50 Ohms • Solder Attachment
• Straight Body Geometry
Features
• Max. Operating Frequency 40 GHz • Contact plating according to MIL-G-45204
• Good VSWR of 1.35:1 • Blind Mate Connector
• Gold Plated Beryllium Copper Contact
Applications

• General Purpose Test • Space Saving for PCB Applications
.
Description
Pasternack’s PE44970 Mini SMP male full detent connector with solder attachment for thru hole PCB is part of our full line of
RF components available for same-day shipping. Our Mini SMP male connector operates up to a maximum frequency of 40
GHz and offers good VSWR of 1.35:1. The Pasternack blind mate connector is ideal for applications where direct visual or
tactile access to the connection point is not possible, for example, when two circuit boards need to be mated.
Our Mini SMP male connector PE44970 datasheet specifications and drawing with dimensions are shown below in this PDF.
Pasternack’s broad catalog of RF, microwave and millimeter wave connectors allows designers to configure and customize
their signal connections however they like. Whether the need is to provide an I/O for a board design, or simply create a custom
cable assembly configuration, Pasternack has the right connector for the job. Pasternack can also expertly build your custom
cable assemblies for you and ship same-day.

Electrical Specifications

Description Minimum Typical Maximum Units
Frequency Range DC 40 GHz
VSWR 1.35:1
Insertion Loss 0.76 dB
Dielectric Withstanding Voltage (AC) 325 Vrms
High Potential Voltage 200 Vrms
Min @ 5 MHz

Inner Conductor DC Resistance 2 mOhms
Insulation Resistance 5,000 MOhms
RF Leakage -65 dB
.

Click the following link (or enter part number in “SEARCH” on website) to obtain additional part information including
price, inventory and certifications: Mini SMP Male Full Detent Connector Solder Attachment Thru Hole PCB, Low Profile
PE44970
