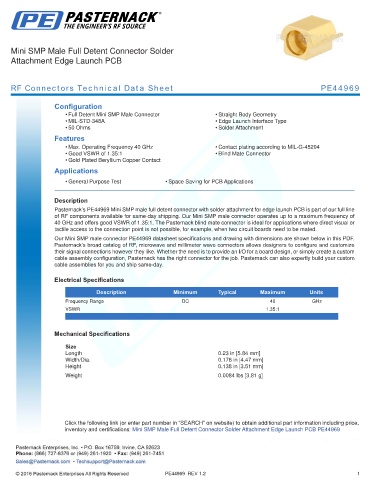

Mini SMP Male Full Detent Connector Solder
Attachment Edge Launch PCB
RF Connectors Technical Data Sheet PE44969
Configuration
• Full Detent Mini SMP Male Connector • Straight Body Geometry
• MIL-STD-348A • Edge Launch Interface Type
• 50 Ohms • Solder Attachment
Features
• Max. Operating Frequency 40 GHz • Contact plating according to MIL-G-45204
• Good VSWR of 1.35:1 • Blind Mate Connector
• Gold Plated Beryllium Copper Contact
Applications
• General Purpose Test • Space Saving for PCB Applications
.
Description
Pasternack’s PE44969 Mini SMP male full detent connector with solder attachment for edge launch PCB is part of our full line
of RF components available for same-day shipping. Our Mini SMP male connector operates up to a maximum frequency of
40 GHz and offers good VSWR of 1.35:1. The Pasternack blind mate connector is ideal for applications where direct visual or
tactile access to the connection point is not possible, for example, when two circuit boards need to be mated.
Our Mini SMP male connector PE44969 datasheet specifications and drawing with dimensions are shown below in this PDF.
Pasternack’s broad catalog of RF, microwave and millimeter wave connectors allows designers to configure and customize
their signal connections however they like. Whether the need is to provide an I/O for a board design, or simply create a custom
cable assembly configuration, Pasternack has the right connector for the job. Pasternack can also expertly build your custom
cable assemblies for you and ship same-day.
Electrical Specifications
Description Minimum Typical Maximum Units
Frequency Range DC 40 GHz
VSWR 1.35:1
.
Mechanical Specifications
Size
Length 0.23 in [5.84 mm]
Width/Dia. 0.176 in [4.47 mm]
Height 0.138 in [3.51 mm]
.
Weight 0.0084 lbs [3.81 g]
.
Click the following link (or enter part number in “SEARCH” on website) to obtain additional part information including price,
inventory and certifications: Mini SMP Male Full Detent Connector Solder Attachment Edge Launch PCB PE44969
PE44969 REV 1.2 1
