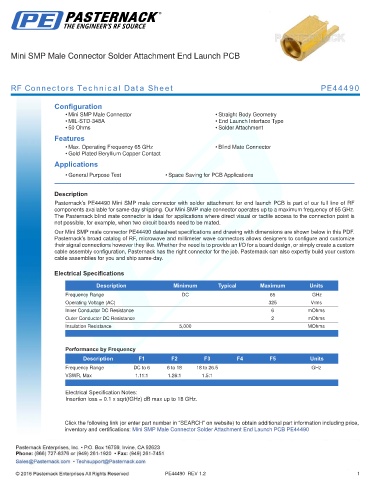

Mini SMP Male Connector Solder Attachment End Launch PCB

RF Connectors Technical Data Sheet PE44490

Configuration
• Mini SMP Male Connector • Straight Body Geometry
• MIL-STD-348A • End Launch Interface Type
• 50 Ohms • Solder Attachment
Features
• Max. Operating Frequency 65 GHz • Blind Mate Connector
• Gold Plated Beryllium Copper Contact
Applications
• General Purpose Test • Space Saving for PCB Applications
.
Description
Pasternack’s PE44490 Mini SMP male connector with solder attachment for end launch PCB is part of our full line of RF
components available for same-day shipping. Our Mini SMP male connector operates up to a maximum frequency of 65 GHz.
The Pasternack blind mate connector is ideal for applications where direct visual or tactile access to the connection point is
not possible, for example, when two circuit boards need to be mated.
Our Mini SMP male connector PE44490 datasheet specifications and drawing with dimensions are shown below in this PDF.
Pasternack’s broad catalog of RF, microwave and millimeter wave connectors allows designers to configure and customize
their signal connections however they like. Whether the need is to provide an I/O for a board design, or simply create a custom
cable assembly configuration, Pasternack has the right connector for the job. Pasternack can also expertly build your custom
cable assemblies for you and ship same-day.

Electrical Specifications
Description Minimum Typical Maximum Units
Frequency Range DC 65 GHz
Operating Voltage (AC) 325 Vrms
Inner Conductor DC Resistance 6 mOhms
Outer Conductor DC Resistance 2 mOhms
Insulation Resistance 5,000 MOhms
.

Performance by Frequency
Description F1 F2 F3 F4 F5 Units
Frequency Range DC to 6 6 to 18 18 to 26.5 GHz
VSWR, Max 1.11:1 1.26:1 1.5:1
.
Electrical Specification Notes:
Insertion loss = 0.1 x sqrt(fGHz) dB max up to 18 GHz.

Click the following link (or enter part number in “SEARCH” on website) to obtain additional part information including price,
inventory and certifications: Mini SMP Male Connector Solder Attachment End Launch PCB PE44490

PE44490 REV 1.2 1
