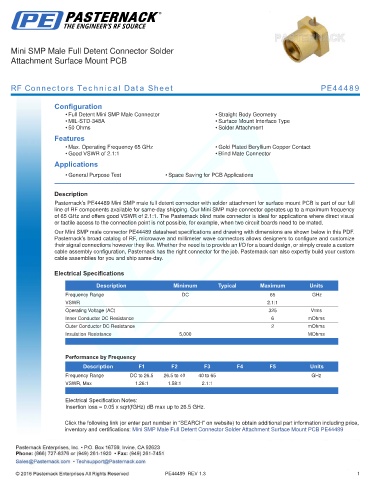

Mini SMP Male Full Detent Connector Solder
Attachment Surface Mount PCB

RF Connectors Technical Data Sheet PE44489

Configuration
• Full Detent Mini SMP Male Connector • Straight Body Geometry
• MIL-STD-348A • Surface Mount Interface Type
• 50 Ohms • Solder Attachment
Features
• Max. Operating Frequency 65 GHz • Gold Plated Beryllium Copper Contact
• Good VSWR of 2.1:1 • Blind Mate Connector
Applications
• General Purpose Test • Space Saving for PCB Applications
.
Description
Pasternack’s PE44489 Mini SMP male full detent connector with solder attachment for surface mount PCB is part of our full
line of RF components available for same-day shipping. Our Mini SMP male connector operates up to a maximum frequency
of 65 GHz and offers good VSWR of 2.1:1. The Pasternack blind mate connector is ideal for applications where direct visual
or tactile access to the connection point is not possible, for example, when two circuit boards need to be mated.
Our Mini SMP male connector PE44489 datasheet specifications and drawing with dimensions are shown below in this PDF.
Pasternack’s broad catalog of RF, microwave and millimeter wave connectors allows designers to configure and customize
their signal connections however they like. Whether the need is to provide an I/O for a board design, or simply create a custom
cable assembly configuration, Pasternack has the right connector for the job. Pasternack can also expertly build your custom
cable assemblies for you and ship same-day.

Electrical Specifications
Description Minimum Typical Maximum Units
Frequency Range DC 65 GHz
VSWR 2.1:1
Operating Voltage (AC) 325 Vrms
Inner Conductor DC Resistance 6 mOhms
Outer Conductor DC Resistance 2 mOhms
Insulation Resistance 5,000 MOhms
.

Performance by Frequency
Description F1 F2 F3 F4 F5 Units
Frequency Range DC to 26.5 26.5 to 40 40 to 65 GHz
VSWR, Max 1.26:1 1.58:1 2.1:1
.
Electrical Specification Notes:
Insertion loss = 0.05 x sqrt(fGHz) dB max up to 26.5 GHz.

Click the following link (or enter part number in “SEARCH” on website) to obtain additional part information including price,
inventory and certifications: Mini SMP Male Full Detent Connector Solder Attachment Surface Mount PCB PE44489

PE44489 REV 1.3 1
