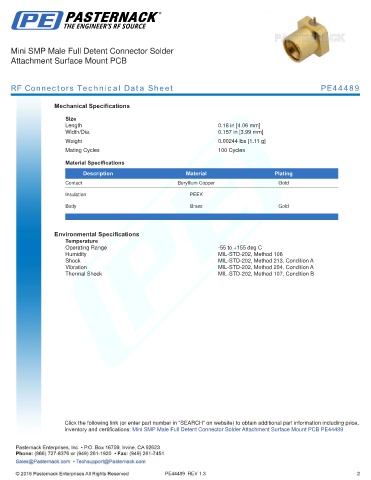

Mini SMP Male Full Detent Connector Solder
Attachment Surface Mount PCB
RF Connectors Technical Data Sheet PE44489
Mechanical Specifications
Size
Length 0.16 in [4.06 mm]
Width/Dia. 0.157 in [3.99 mm]
.
Weight 0.00244 lbs [1.11 g]
.
Mating Cycles 100 Cycles
Material Specifications
Description Material Plating
Contact Beryllium Copper Gold
Insulation PEEK
Body Brass Gold
.
Environmental Specifications
Temperature
Operating Range -55 to +155 deg C
Humidity MIL-STD-202, Method 106
Shock MIL-STD-202, Method 213, Condition A
Vibration MIL-STD-202, Method 204, Condition A
Thermal Shock MIL-STD-202, Method 107, Condition B
Click the following link (or enter part number in “SEARCH” on website) to obtain additional part information including price,
inventory and certifications: Mini SMP Male Full Detent Connector Solder Attachment Surface Mount PCB PE44489
PE44489 REV 1.3 2
